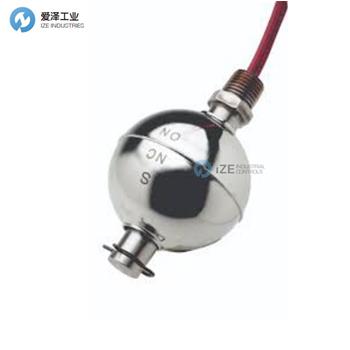

GEMS液位開關LS-1950 01950技術參數
Specifications | |
Sku | 01950 |
Model | LS-1950 |
Sensor Type | Float Type |
Primary Material Of Construction | Alloy |
Wetted Materials | 316 Stainless Steel |
Stem Material | Stainless Steel |
Float Material | 316 Stainless Steel |
Float Diameter | 2 1/16" |
Actuation Level | 1 3/32" |
Min. Liquid SG | 0.75 |
Maximum Pressure | 750 psi |
Minimum Temperature | -40°F |
Maximum Temperature | 480°F |
Mounting Size | 1/4" NPT Male |
Mounting Style | Vertical |
Electrical Termination | 25" Long, 18 AWG, Polymeric Leads |
Switch Type | SPST (20 VA) |
Switch Operation | Normally Open (Reversible) |
Input | N/A |
Output | N/A |
Approvals | UL Recognized, CSA Listed, CE, ROHS |
GEMS液位開關介紹
PRODUCT DESCRIPTION:
LS-1950 Series Single-Point Level Switches provide high temperature and pressure capabilities for high performance applications, including oils, water and chemicals. The materials of construction comply with FDA food contact regulations and the switch is exceptionally accurate and rugged for higher temperatures and in pressurized or corrosive liquids.
High Temperature
Pressure Capabilities
Materials of Construction Comply with FDA Food Regulations
產品描述：
LS-1950 系列單點液位開關為高性能應用（包括油、水和化學品）提供高溫和高壓能力。 結構材料符合 FDA 食品接觸法規，開關在較高溫度和加壓或腐蝕性液體中非常準確和堅固。
高溫
壓力能力
結構材料符合 FDA 食品法規
GEMS液位開關其他常用型號：
GEMS LS-1950 01950
GEMS 01950
GEMS 26717
GEMS 79999
GEMS SINGLE-POINT LEVEL SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GEMS液位開關LS-1950 01950的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GEMS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
