E+E變送器EE850系列技術參數
Power supply | 24 V DC ±20 % 15 - 35 V DC |
Current consumption, typ. | 15 mA + output current |
Peak current, max.. | 350 mA für 0.3 s (analogue output) |
Minimum air speed in the duct, min. | 1 m/s (196 ft/min) |
Electrical connection | Screw terminals max. 2.5 mm2 (AWG 14) |
Cable gland | M16x1.5 |
Working and storage conditions | -20...+60 °C (-4...+140 °F) |
Enclosure material | Polycarbonate (PC), UL94 V-0 approved |
Protection rating | Enclosure: IP65 / NEMA 4X |
Electromagnetic compatibility | EN 61326-1 |

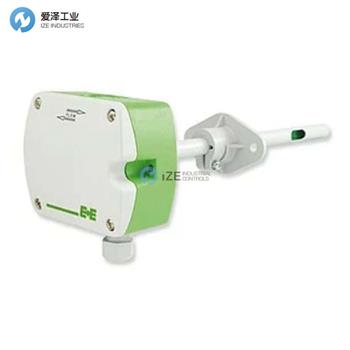

E+E變送器EE850系列介紹
EE850 在一個創新的外殼中結合了 CO2、相對濕度 (RH) 和溫度 (T) 測量。 它是按需控制通風和樓宇自動化的選擇。 由于 CO2 測量范圍高達 10 000 ppm 和 T 工作范圍 -20...+60 °C (-4...+140 °F)，EE850 也可用于要求苛刻的氣候和過程控制。
長期穩定性
EE850 采用 E+E 雙波長 NDIR CO2 傳感器，可補償老化效應，對污染高度不敏感，并提供出色的長期穩定性。 E+E 專有涂層保護 RH 傳感元件免受灰塵、污垢和腐蝕的影響。
測量精度高
多點 CO2 和 T 工廠調整程序可在整個 T 工作范圍內實現出色的 CO2 測量精度。
模擬、數字和無源 T 輸出
CO2、RH 和 T 測量數據以及計算的露點溫度 (Td) 可在各種模擬輸出上獲得。 此外，采用 Modbus RTU 或 BACnet MS/TP 協議的 RS485 接口還提供其他參數，例如絕對濕度 (dv)、混合比 (r)、水蒸氣分壓 (e) 或焓 (h)。
簡單的配置和調整
可選的適配器和免費的 EE-PCS 配置軟件有助于 EE850 的配置和調整。
The EE850 combines CO2, relative humidity (RH) and temperature (T) measurement in an innovative enclosure. It is ideal for demand controlled ventilation and building automation. Due to the CO2 measuring range up to 10 000 ppm and T working range -20...+60 °C (-4...+140 °F), the EE850 can be employed also in demanding climate and process control.
Long-Term Stability
The EE850 incorporates the E+E dual wavelength NDIR CO2 sensor, which compensates for ageing effects, is highly insensitive to pollution and offers outstanding long term stability. The RH sensing element is protected against dust, dirt and corrosion by the E+E proprietary coating.
High Measurement Accuracy
A multiple point CO2 and T factory adjustment procedure leads to excellent CO2 measurement accuracy over the entire T working range.
Analogue, Digital and Passive T Outputs
The CO2, RH and T measured data as well as the calculated dew point temperature (Td) are available on various analogue outputs. Additionally, the RS485 interface with Modbus RTU or BACnet MS/TP protocol supplies also other parameters such as absolute humidity (dv), mixing ratio (r), water vapor partial pressure (e) or enthalpy (h).
Easy Configuration and Adjustment
An optional adapter and the free EE-PCS configuration software facilitate the configuration and adjustment of the EE850.

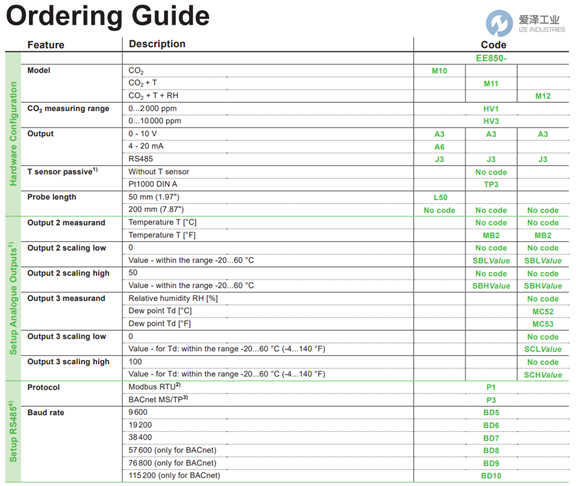

E+E變送器EE850系列選型
E+E變送器EE850系列其他常用型號：
E+E EE850-M12HV3J3P1BD6
E+E EE850-M10HV1A6L50
E+E EE850-M12HV1A3MB2SBL32SBH140
E+E EE850-M10HV1A6
