ABB 溫度計TSH210.Y0.A2.H31.M2.N4.A08.K1.T2.A4.Y1.M5規格描述
TSH210 |
Y0 - Explosion Protection / Approvals : Without |
A2 - Thermocouple Design : With metal thermowell and ceramic inner tube (Form AMK acc. EN 50446) |
H31 - Material Thermowell / Inner Tube : AISI 314 SST (1.4841) / Ceramic C-610 |
M2 - Thermowell Diameter : 22 x 2 mm (0.87 x 0.08 in.) |
N4 - Nominal Length : N = 1000 mm (39.37 in.) |
A08 - Process Connection : Adjustable stop flange, cast steel |
K1 - Thermocouple Type / Diameter : 1 x Type K / Wire diameter 2.5 mm (0.10 in.) |
T2 - Sensor Accuracy : Accuracy Class 2 acc. IEC 60584 |
A4 - Connection Head Type / Material : AUS / Aluminium, hinged cover, with snap lock |
Y1 - Transmitter : Without transmitter, sensor with ceramic terminal block |
M5 - Documentation Language : English |
ABB 溫度計TSH210系列介紹
High temperature thermometer
SensyTemp TSH200
High temperature combustion, annealing and melting processes are usually executed without pressure at temperature up to 1800 °C (3272 °F). As a result, the selection of the appropriate thermowell is the greatest challenge for temperature measurement.
Both the thermowell materials’ temperature resistance and their resistance to aggressive media are decisive. In conjunction with the appropriate thermocouple, the thermowell has a considerable effect on the temperature sensor’s measuring accuracy and service life.
You can benefit from optimal plant productivity and efficiency by selecting the appropriate and correctly dimensioned temperature sensor.
Overview
Straight thermocouples for high temperature applications in industrial furnaces, combustion processes and melting processes. It communicates via 4 to 20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus or direct sensor output. Approved ABB typical modular system:

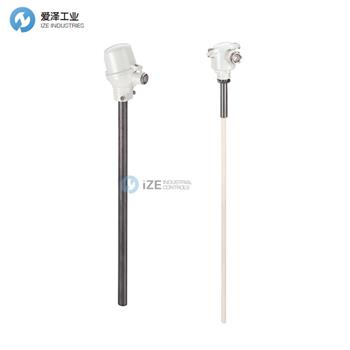

TSH210 with metal thermowell, for temperatures up to 1300 °C (2372 °F)
TSH220 with ceramic thermowell, for temperatures up to 1800 °C (3272 °F)
suitable to main process connections
suitable to main process control systems
Data
Supports numerous applications
– In accordance with EN 50446 and also available in accordance with ABB standard
Connection heads
– AUZ: Aluminum, with hinged cover
– AUZH: Aluminum with upper hinged cover
– BUZ: Aluminum, with hinged cover
– BUZH: Aluminum, with upper hinged cover
– Other heads in various forms and materials
– Transmitter in connection head (4 to 20 mA HART, PA, FF)
Process connections
– Stop flange with counterflange
– threaded socket
– welded standard flange
高溫溫度計
SensyTemp TSH200
高溫燃燒、退火和熔煉過程，通常是在沒有壓力的情況下溫度可高達1800°C（3272°F）。因此，選擇合適的熱電偶套管是溫度測量的較大挑戰。
套管材料的耐溫性和防腐蝕性是兩個決定性的因素。與適當的熱電偶組合使用中，主要考慮套管對溫度傳感器測量精度的影響以及套管本身的使用壽命。
您可以通過選擇恰當的溫度傳感器尺寸，并從優化生產力和效率中受益。
綜述
用于工業爐、燃燒和熔煉過程的高溫裝配式熱電偶。通訊方式有 FOUNDATION Fieldbus、PROFIBUS PA，HART，4 … 20mA 或直接傳感器輸出。通過ABB典型的模塊化系統：
TSH210，金屬套管型，溫度高達1300°C（2372°F）
TSH220，陶瓷套管型，溫度高達1800°C（3272°F）
TSH250，鉑金套，溫度高達1650°C（3002°F）
適用于主要過程連接
適用于主要過程控制系統
數據
支持眾多應用場合
– 符合 EN 50446標準，同時也符合ABB標準
接線盒
– AUZ：鋁制，鉸接蓋
– AUZH：鋁制，鉸鏈高蓋
– BUZ：鋁制，鉸接蓋
– BUZH：鋁制，鉸鏈高蓋
– 其它各種形式和材質的接線盒
– 一體式變送器（4 … 20 mA 疊加 HART、FF、PA）
過程連接
– 活動鎖止法蘭組
– 活動卡套螺紋
– 焊接式標準法蘭
ABB 溫度計TSH210系列其他常用型號：
ABB TSH210.Y0.A2.H31.M2.N4.A08.K1.T2.A4.Y1.M5
ABB TSH210-Y0A2H11M2N4A13K1T1A6Y1C4C6M5
ABB TSH210.Y0.A2.H31.M2.N4.A08.K1.T2.A6.Y1-M5
