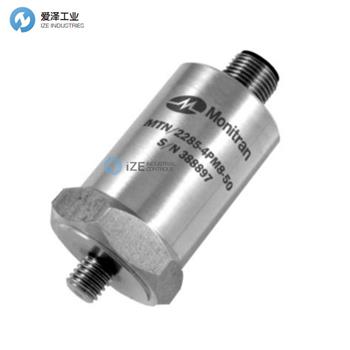

MONITRAN加速度計MTN/2285C系列技術參數
Technical | |
Output current | 4-20mA DC proportional to rms velocity (mm/s) |
Supply voltage | 12-32V DC (for 4-20mA) |
Frequency response | 2Hz to 1kHz ±10% |
Mounted base resonance | 18kHz (nominal) |
Isolation | Electronics in Faraday cage, isolated from body |
Dynamic range | 50g peak |
Transverse sensitivity | Less than 5% |
Operating temperature | -25 to 90°C |
Temperature sensitivity | 0.08%/°C |
Case material | Stainless steel |
Cable | Integral stainless steel overbraided ETFE |
Standard cable length | 5m |
Maximum cable length | 100m |
Mounting torque | 8Nm |
Case material | Stainless steel |
Weight | 140g (nominal) |
Sealing | IP67 |
MONITRAN加速度計MTN/2285C系列介紹
通用、頂部插入式速度傳感器，帶直流輸出。整體采用堅固的不銹鋼制成，可在惡劣環境下持續監測振動。內部電子元件封裝在法拉第籠中并隔離以更大程度地降低噪音。密封至 IP67，具有行業標準兩線 4-20mA 輸出，與傳感器范圍成比例，可直接連接到 PLC、DCS 和其他工業控制器。包括一體式不銹鋼編織 ETFE 電纜，并提供多種安裝方式。
General purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise. Sealed to IP67 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers. Includes integral stainless overbraided ETFE cable and is available with a wide range of mountings.
MONITRAN加速度計MTN/2285C系列其他常用型號：
MONITRAN MTN/2285CM8-20
MONITRAN MTN/2285C-10
MONITRAN MTN/2285C-20
MONITRAN MTN/2285C-25
MONITRAN MTN/2285C-50
MONITRAN MTN/2285C-100
MONITRAN VELOCITY TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MONITRAN加速度計MTN/2285CM8-20的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MONITRAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
MONITRAN加速度計MTN/2285C系列MTN/2285CM8-20技術參數及選型
