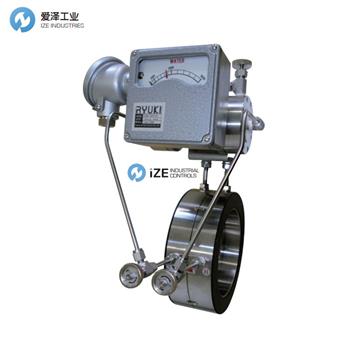

RYUKI流量計ODM-300系列技術參數
Specifications | |
Pressure range | 0.05~1.0MPa(G) |
Temperature range | 0~100°C (No condensation or freezing conditions.) |
Flow rate accuracy | 土2% (full scale) |
Connection method | Flange insertion methcd |
Differential pressure | MAX0.05MPa |
Contact specifications | |
Number of contacts | 1~2 |
Contact method | Microswitch |
Contact capacity | AC125V-5A, 250V-5A |
Withstand voltage | AC125V-5A, 250V-5A (resistance load) |
Insulation resistance | 100 MΩ or more with DC500V megger (between terminal and case) |
RYUKI流量計ODM-300系列介紹
1.結構緊湊，易于操作，易于安裝在管道中。
2.流程指令采用機械操作，指令穩定，彈性佳。
3.由于指示器的受壓部分使用隔膜（特殊橡膠和布），因此具有優異的耐化學性，在強度和溫度方面都足以滿足一般用途。
4.由于指示器的機械部分位于大氣中，因此幾乎沒有液體腐蝕。
5.由于微型開關可以在指示器中內置電觸點，因此可以發送報警信號和流量指令。
6.即使最大水平距離與差壓檢測部分和流量指示器部分相距100米，也可以進行測量和遠程指示。（分離型）
7.可以從一個探測器安裝多個指示器，并可用于現場指令/遠程指令/其他目的。
8.更換流量范圍可以通過更換表盤和節流機構（孔板）輕松完成。
9.檢測部分之前和之后的管道需要直管部分。
1. It is compact and easy to handle, it is easy to install in piping.
2. The flow instruction is mechanically operated, the instructions are stable and excellent in resilience.
3. Since the pressure receiving part of the indicator uses a diaphragm (special rubber with cloth), it has excellent chemical resistance, it is sufficient for general use both in terms of strength and temperature.
4. Since the mechanical part of the indicator is in the atmosphere, there is little corrosion by fluid.
5. Since electrical contacts can be built in the indicator by microswitches, it is possible to send alarm signals as well as flow instructions.
6. Even if the maximum horizontal distance is 100 m away from the differential pressure detection part and the flow rate indicator part, measurement and remote instruction is possible. (Separated type)
7. Multiple indicators can be installed from one detector, and can be used for on-site instructions / remote instructions / other purposes.
8. Changing the flow rate range can be easily done by replacing the dial plate and the throttle mechanism (orifice plate).
9. A straight pipe section is required for piping before and after the detection section.
RYUKI流量計ODM-300系列其他常用型號：
RYUKI ODM-300-S-DR-10K150A
RYUKI ODM-300-DR-10K150A
RYUKI ODM-300-S-ST-5K40A
RYUKI ODM-300-ST-5K40A
RYUKI ODM-300-S-ST-150A-10K-2500-BC
RYUKI ODM-300-S-DR-150A-10K-2500-BC
RYUKI ODM-300-S2-ST-150A-10K-2500-BC
RYUKI ODM-300-S2-DR-150A-10K-2500-BC
RYUKI ODM-300-S-ST-150A-10K-500-BC
RYUKI ODM-300-S-DR-150A-10K-500-BC
RYUKI ODM-300-S2-ST-150A-10K-500-BC
RYUKI ODM-300-S2-DR-150A-10K-500-BC
RYUKI ODM-300S-TD
