HONEYWELL溶解氧探頭DL5000系列技術參數
Specifications DL5000 Series Probe | |
Response Time | 90% in 60 seconds (after probe warm-up |
Oxygen Consumption | Negligible |
Operating Temperature Range | 2-60C (35.6-140F); must not freeze |
Storage Temperature Range | 2-60C (35.6-140F) |
Maximum Flow | 300 mL/min. with flow chamber; no dependence on stirring or flowrate |
Maximum Pressure | PVC: 207 kPa (30 psig) |
Calibration | Air and sample |
Dimensions | 219 mm x 34 mm OD (8.62” x 1.315” OD), 1” NPT pipe size, 6.1 m (20 ft) waterproof cable, 30.48m (100 ft) cable available for ppm applications |
Weight | PVC: 0.6 kg (1.24 lb) |
Probe Accuracy: | ppm: ± 0.2 ppm at calibration conditions after stabalization |
Interferences | Dissolved Hydrogen (present in boiler water reactor nuclear power plant samples) can cause significant negative interference in measurement. Honeywell DO probe is not recommended for these types of applications. |
Probe to Analyzer Maximum Distance | ppm: 30.4 m (100 ft) |
HONEYWELL溶解氧探頭DL5000系列介紹
DL 5000溶解氧探頭基于獨特的平衡探頭技術。這種平衡探頭技術基于氧氣的分壓，而不是氧氣通過探頭膜的擴散速率。結構材料與這種獨特的設計相結合，產生了一種不受工藝流程和污染影響的無內部維護探頭。特點——準確、可靠、免維護的溶解氧測量。

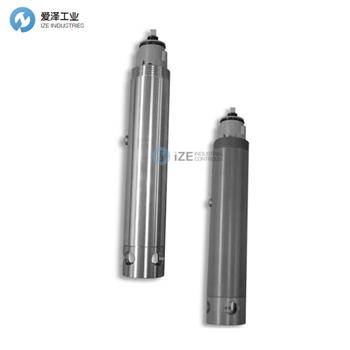

The DL 5000 Dissolved Oxygen probe is based on a unique equilibrium probe technology. This patented equilibrium probe technology is based on the partial pressure of oxygen rather than the diffusion rate of oxygen through the probe membrane.The materials of construction combined with this unique design result in a no-internalmaintenance probe that is independent of process flow and fouling. Bottom line—an accurate, reliable,maintenance-free, Dissolved Oxygen measurement.
HONEYWELL溶解氧探頭DL5000系列選型
HONEYWELL溶解氧探頭DL5000系列其他常用型號：
HONEYWELL DL5PPB-100-0000-000
HONEYWELL DL5PPB-200-0000-000
HONEYWELL DL5PPB-300-0000-000
HONEYWELL DL5PPB-400-0000-000
HONEYWELL DL5PPB-500-0000-000
HONEYWELL DL5PPB-700-0000-000
HONEYWELL Dissolved Oxygen Probe NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL溶解氧探頭DL5PPB-300-0000-000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
HONEYWELL溶解氧探頭DLP5000系列DL5PPB-300-0000-000技術參數及選型
