WHITLOCK計時器000506技術參數
SPECIFICATIONS | |
Temperature Range | -40C to +55C |
Switch RaTing | 2.5VA/240 VDC |
PRX Rating | 2.5VA/200 VDC MAX/0.5A |
Epoxy Encapsulated | UL LISTED EL-CAST VFR 641 |
Alarm/Shutdown | Factory default for 2 minute alarm |
Power | Field Replaceable - Lithium Battery |
Battery | P/N 000505 |
Divider Block Application | Dropsa/Lincoln/SBCO/Lubriquip |
Warranty | 2.5 Years |
WHITLOCK計時器000506產品介紹

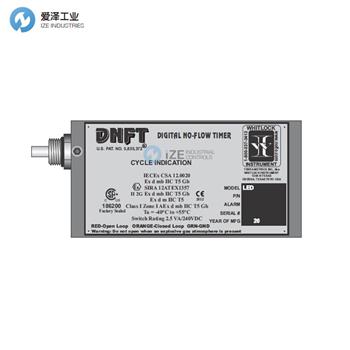

DNFT-LED是一款完全封閉的電子設備，結合了最新的微處理器和晶體管組件技術，用于檢測分配器潤滑系統的慢流和無流狀態。DNFT內置一個振蕩晶體，以準確監控潤滑系統的循環時間，從而實現精確的定時關機功能。磁鐵組件和控制外殼直接安裝在分配閥上，成為潤滑系統的一個組成部分。DNFT由可更換的鋰電池供電。如果電池電壓降至正常工作水平以下，DNFT將進入報警模式，設備無法重新啟動。LED型號利用LED指示分配閥的每個循環，從而使操作員能夠輕松設置和監控潤滑速率。DNFT經過設計，并被評級為適用于Class I Zone I環境，適合在濕潤或干燥的戶外場所使用，且海拔在2000米以下，污染等級為4。
The DNFT-LED is a totally enclosed electronic device, combining the latest technology in microprocessor and transistor components for detecting Slow-Flow and No-Flow of divider block lubrication systems. The DNFT incorporates an oscillating crystal to accurately monitor the cycle time of the lubrication system to enable precision timed shutdown capability. The magnet assembly and control housing mount directly to the divider valve to become an integral part of the lubrication system. The DNFT operates on a field replaceable lithium battery. If battery voltage drops below normal operating levels the DNFT goes into alarm mode and the unit cannot be restarted. LED models utilize an LED to indicate each cycle of the divider valve. This enables the operator to easily set and monitor lubrication rates. The DNFT has been designed and rated for use in Class I Zone I environments, to be used outdoors in wet or dry locations, in altitudes under 2000 meters, with a Pollution Degree of 4.
WHITLOCK計時器DNFT系列其他常用型號：
WHITLOCK DNFT-LED
WHITLOCK 000506
WHITLOCK Timer NEW + ORIGINAL+ ONE YEAR WARRANTY
