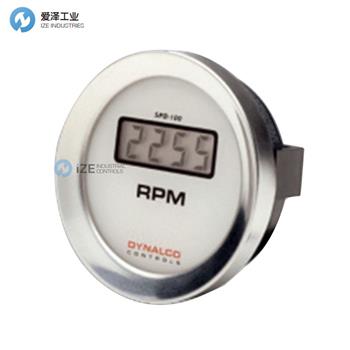

DYNALCO轉速計SPD系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:SPD100-1
DYNALCO轉速表SPD100-1
預估貨期:
關  鍵  詞:DYNALCO轉速表SPD100-1SPD-100
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系
技術資料:DYNALCO INSTRUMENTS SPD-100

DYNALCO轉速表SPD100-1產品參數

SPECIFICATIONS

External Power Requirements:

All models are signal-powered. Lighted versions: 12 or 24 Vdc, depending on model.

Display:

Four active digits (0 to 9999), non-blinking LCD display; character height of 0.5 inches (14 mm). Display contrast increases with increasing ambient light.

Input Valve Voltage:

From pickups, pulsers, shaft encoders, etc.
? Minimum signal amplitude: 2.5 Vrms.
? Maximum permissible signal: 15 Vrms.
The SPD-100 automatically limits pickupsignals at approximately 10 volts peak-topeak. Input impedance is 100 Ω in serieswith a 6 volt Zener diode.

Input Signal Frequency:

Maximum input signal frequency of 20,000 Hz. Lowest frequency range limited by gate time and corresponding numerical display.

Isolated Circuit:

All circuitry is totally floating, i.e. totally isolated and insulated from the case and from ground.

Operating Temperature Range:

–5o F to +175oF (–20o C to +80oC)

Storage:

–40oF to +195oF (–40oC to +90o C).

Vibration:

MIL STD 810C; Method 514.2;Curve Q; Procedure V; Modified to 500 Hz upper limit. 5 Hz to 10 Hz @ 0.2 inches D.A.; 10 Hz to 18 Hz @ 1.0 g (peak); 18 Hz to 57 Hz @ 0.06 inches D.A.; 57 Hz to 500 Hz @ 10 g (peak).

Accuracy:

One rpm resolution; within 0.5% (0.1% typical at room ambient) under all combined environmental conditions.

Gate Time Ranges:

SPD-100 Series : field-selectable from 0.26 to 5.7 seconds.
SPD-108 Series: field-selectable from 0.13 to 2.85 seconds.

This accommodates calibrations for an extremely broad range of corresponding pulses per second

Magnetic Pickups

Dynalco Magnetic Pickups M102 and M107 are used with the SPD-100 Series in most applications. Refer to Dynalco Magnetic Pickup brochure for various types and characteristics.
For low-speed applications, or to permit operation with larger gaps, the ultrahigh sensitivity M142 can be used.
For intrinsically safe applications Dynalco Controls offers various models, with the M202 and M134 the most frequently used.

Weight:

1 lb (0.45 kg)

愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

DYNALCO轉速表SPD100產品介紹

TACHOMETER: signal-powered, 4- digit, intrinsically safe, unlighted display

The SPD-100 is a solid- state, intrinsically safe tachometer. The gate time range (0.26 to 5.70 seconds) is field- programmable. It is well- sealed for rugged indoor and outdoor applications. It has 4-digit, unlighted, LCD display. CSA and ABS Type approved.



測速儀:信號供電、4 位、本安型、不發光顯示器

SPD-100是一種固態、本質安全的轉速計。門限時間范圍(0.26 到 5.70 秒)是現場可編程的。它密封良好,適用于惡劣的室內和室外應用。它有4位不發光的LCD顯示屏。CSA和ABS型式批準。



DYNALCO轉速表其他常見型號:

DYNALCO SPD-100

DYNALCO SPD-100L

DYNALCO SPD-108

DYNALCO SPD-108L

DYNALCO SPD100-1
