SOLARTRON信號調節器OD2技術參數
Technical Specification | OD2 |
Voltage Range | 13 VDC to 48 VDC |
Current Range | Up to 30 mA |
Primary Voltage | 0-9 Vrms |
Primary Frequency | 5 kHz or 13 kHz nominal |
Input Range | 30 to 530 mV/V |
Current Output | 4-20 mA, 2 wire |
Output Ripple | < 38 μA rms |
Output Offset | Up to 100% on maximum gain (course & fine adjustment) |
Temperature Coefficient Gain | < 0.01% FRO/°C |
Temperature Coefficient Offset | < 0.01% FRO/°C |
Warm Up | 15 minutes recommended |
Linearity | < 0.02% FRO |
Bandwidth (-3dB) | 25 Hz |
Operating Temperature Range | 0 to 70°C (32 to 158°F) |
Storage Temperature Range | -40 to 80°C (-42 to 176°F) |
IP Rating | IP65 |
Transducer | Internal Terminal Block |
Power Suppl | Internal Terminal Block |
Output Signal | Internal Terminal Block |
Enclosure dimensions (mm) (without connectors) | 120 x 80 x 54.5 |
Weight (g) | 220 |
Material | Light Grey ABS |
With Set-up | 911277 |
Without Set-up | 910764 |

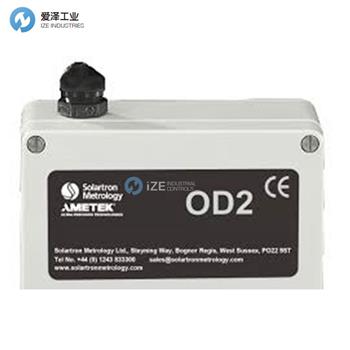

SOLARTRON信號調節器OD2介紹
OD（振蕩器/解調器）系列調節電子設備是 Solartron 的解決方案，用于連接其擴展范圍的模擬電感式傳感器。 OD 系列包括 OD2、OD4 和 OD5 單元，每個單元都提供不同的功能以適應預期的應用。
OD2 是兩線制 4 至 20 mA LVDT 信號調節器。 由于其對噪聲和電纜電阻的低敏感性，它專為長信號傳輸距離而設計。 兩條線同時承載電源和信號，傳感器的位置由 4 到 20 mA 滿量程消耗的電流量指示。 電纜斷裂會導致電流損失，這表明存在故障。
The OD (Oscillator / Demodulator) family of conditioning electronics is Solartron’s solution for interfacing to its extended range of analogue inductive transducers. The OD family comprises the OD2, OD4 and OD5 units, each offering different functionality to suit the intended application.
The OD2 is a two wire 4 to 20 mA LVDT signal conditioner. It is designed for long signal transmission distances due to its low susceptibility to noise and cable resistance. The two wires carry both power and signal, the transducer’s position is indicated by the amount of current consumed from 4 to 20 mA full scale. Cable breakage results in a loss of current flow, which indicates a fault.
SOLARTRON信號調節器OD系列其他常用型號：
SOLARTRON OD2 911277
SOLARTRON OD2 910764
SOLARTRON OD4 911278
SOLARTRON OD4 911052
SOLARTRON OD5 911316-UK
SOLARTRON OD5 911315-UK
SOLARTRON OD5 911316-EU
SOLARTRON OD5 911315-EU
SOLARTRON OD5 911316-US
SOLARTRON OD5 911315-US
SOLARTRON Signal conditioner NEW + ORIGINAL+ ONE YEAR WARRANTY
