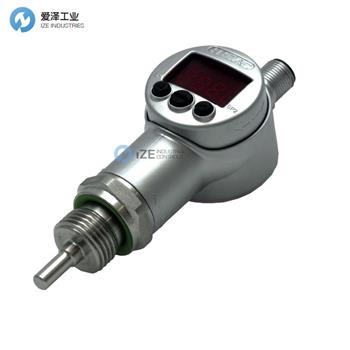

HYDAC溫度傳感器ETS3228-5-018-000規格描述
ETS3200 series |
2 = G1/2 A DIN 3852 (male) |
8 = Male M12x1, 5 pole only possible on output model "5" |
5 = 2 switching outputs and 1 analogue output only in conjunction with electrical connection type "8" |
018=Probe length in mm |
000 = Standard |
HYDAC溫度傳感器ETS3200系列描述及選型
Pressure-resistant for pipe installation; for tank installation
The ETS 3200 is a compact, electronic temperature switch with 4-character digital display. With its integrated temperature sensor, the ETS 3200 is particularly suitable for direct tank installation and is available with several sensor lengths. The up to 600 bar pressure-resistant version with an integrated 18 mm temperature sensor can also be mounted directly in the pipeline or on the hydraulic block. Various output variants with one or two switching outputs, optionally with additional analogue output signal, open up a multitude of application possibilities. The switching points and the associated hystereses can be set up per keyboard very quickly and with great user-friendliness. For adjustment to the respective application, the device offers many additional setting parameters (e.g. switching delay times, opener/closer functions, etc.)
2 switching outputs, capable of bearing loads of up to 1.2 A per output
Optional analogue output (4 ... 20 mA / 0 ... 10V)
4-character digital display
Optional alignment of the display by means of rotational capability in 2 axes
Switching / reset points and many helpful additional functions can be set using the foil keyboard
Display of measured value and units in °C or °F
管道安裝耐壓；用于儲罐安裝
ETS 3200是一款緊湊型電子溫度開關，帶有4位數字顯示。憑借其集成溫度傳感器，ETS 3200特別適用于直接罐安裝，并提供多種傳感器長度。帶有集成 18 mm 溫度傳感器的高達600 bar的耐壓版本也可以直接安裝在管道中或液壓塊上。帶有一個或兩個開關輸出的各種輸出變體，可選擇附加模擬輸出信號，開辟了多種應用可能性?？梢苑浅？焖俚卦O置每個鍵盤的切換點和相關的滯后，并具有極大的用戶友好性。為了適應各自的應用，設備提供了許多額外的設置參數（例如開關延遲時間、開門/關門功能等）
2個開關輸出，每個輸出能夠承受高達 1.2 A 的負載
可選模擬輸出（4 ... 20 mA / 0 ... 10V）
4位數字顯示
通過2個軸的旋轉能力可選地對齊顯示器
可以使用鋁箔鍵盤設置切換/重置點和許多有用的附加功能
以°C 或°F 顯示測量值和單位
HYDAC溫度傳感器ETS3200系列其他常用型號：
HYDAC ETS 3228-5-018-000 909095
HYDAC ETS 3228-5-100-000 909621
HYDAC ETS 3228-5-100-400 924917
HYDAC ETS 3228-5-250-000 909622
HYDAC ETS 3228-5-350-000 909623
HYDAC ETS 3228-5-350-400 929822
HYDAC Temperature Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC溫度傳感器ETS3228-5-018-000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
