SIGMA壓力傳感器72系列技術參數
Product Specifications | |
Flow Control Application: | Low Pilot (PSL) Normally Closed, High Pilot (PSH) Normally Open |
Control Function: | Three-Way (Block & Bleed) |
Piston Sensor Size: | .187” to 1.25” |
Adjustment Range Capability: | Per Spring charts |
Panel Mount: | 1-1/2 Diameter |
Control Ports Pressure: | 150 PSI (10.34 bar) maximum |
Flow Line: | 6,000 PSI (413 bar) maximum |
Seal Material: | Viton |
Instrument Supply Media (Control Ports): | Pneumatic, Hydraulic |
Instrument Supply Media (Flow Line): | Process Fluids, Natural Gas, Hydraulic or Pneumatic |
Connection Size: | 1/4-18 Female N.P.T. Control Ports, 1/2-14 Male N.P.T. Flow Line connection |
Component Material (Metal): | 316 Stainless Steel |
Weight: | 5.5 Lbs. |
Operating Temperature: | -20° F to +250° F (-29° C to +121° C) |
Overall Dimensions: | 10.4 Height (Max.at lowest setting) x 1.75” Diameter |
SIGMA壓力傳感器72系列介紹
72KS系列壓力傳感器是兩位置，三通模塊和泄放（通用）壓力監測流量管線先導。可以將其連接為高（上升/上升）或低（下降/下降）壓力傳感設備。在高壓安全（PSH）應用中，設計的先導閥會在超過高壓設置時失去儀表供應輸出。在低壓安全（PSL）操作模式下使用，只要超過低壓設置，壓力傳感器就會獲得儀器供應的輸出。
當檢測到異常的高或低過程壓力時，可使用三通截止閥和排氣先導閥來關閉安全閥并保護設施。在其他應用中，它們用于啟動/停止特定壓力范圍限制內的控制序列。
The 72KS Series Pressure Sensors are a two position, three-way block and bleed (universally ported) pressure monitoring Flow Line Pilot. It can be connected to respond as either a High (rising/ increasing) or Low (falling/decreasing) pressure sensing device. In the Pressure Safety High (PSH) application, the Pilot is designed to lose instrument supply output whenever the high-pressure setting is exceeded. Employed in the Pressure Safety Low(PSL) mode of operation, the pressure sensor will gain instrument supply output whenever the low-pressure setting is surpassed.
Three-way Block & Bleed Pilots are used to initiate safety valve closure and safeguard facilities upon detection of either an abnormal high or low process pressure. In other applications, they are used to start/stop control sequences within particular pressure range limits.
SIGMA壓力傳感器72系列其他常用型號：
SIGMA 72K27
SIGMA 72K37
SIGMA 72KS43S
SIGMA 72KS25S
SENTRY Pressure Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SIGMA壓力傳感器72KS25S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SIGMA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.

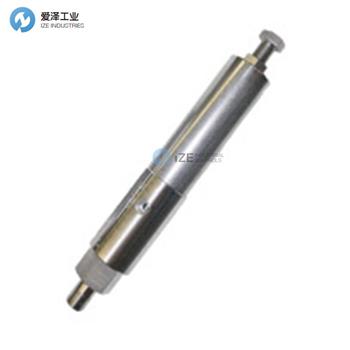

SIGMA壓力傳感器72系列72KS25S介紹
