LOGTAG溫度記錄儀TRIX-8技術參數
Product Model | TRIX-8. |
Sensor Measurement Range | -40°C to +85°C (-40°F to +185°F) |
Operating Temperature Range | -40°C to +85°C (-40°F to +185°F). |
Storage Temperature Range | -30°C to +55°C (-22°F to +131°F). |
Rated Temperature Reading Accuracy | Better than ±0.5°C for -20°C to +40°C. |
Rated Temperature Reading Resolution | Less than 0.1°C for -40°C to +40°C. |
Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air (1m/s). |
Recording Capacity | 8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging. |
Sampling Interval | Configurable from 30 seconds to several hours. |
Logging Start Options | Push button start or specific date & time. Optional start delay of up to 18 hours. |
Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
Alarms | 1 configurable upper and 1 configurable lower alarms. |
Download Time | Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used. |
Environmental | IP65 (roughly equivalent to NEMA 4). |
Power Source | CR2450 3V LiMnO2 Battery (Fixed). |
Battery Life | 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly). |
Real Time Clock | Built-in real time clock. |
Size | 86mm(H) x 54.5mm(W) x 8.6mm(T). |
Weight | 33g. |
Case Material | Polycarbonate. |
LOGTAG溫度記錄儀TRIX-8產品介紹
LogTag TRIX-8 是一款多功能、寬范圍、多行程溫度記錄儀，在 -40°C 至 +85°C（-40°F 至 +185°F）的測量范圍內具有高分辨率溫度讀數。 TRIX-8封裝在堅固耐用的聚碳酸酯外殼中，具有實時時鐘，可為每個溫度讀數提供日期/時間戳。
使用LogTag接口和免費提供的配套軟件LogTag Analyzer，LogTag 可以輕松設置記錄條件，包括延遲啟動、采樣間隔、讀數數量、連續或固定讀數數量以及激活 ALERT 指示器的條件配置。使用 LogTag Analyzer 下載讀數，它提供圖表、縮放、列出數據統計數據的工具，并允許將數據導出到其他應用程序，如Excel。
LogTag TRIX-8符合溫度監測設備的相關國際標準，如 FCC、CE、C-TICK、TüV、EN12830、WHO PQS 和 RoHS。這不僅證明了LogTag TRIX-8的質量，而且強調了其適用于需要準確性和一致性的溫度監測應用。

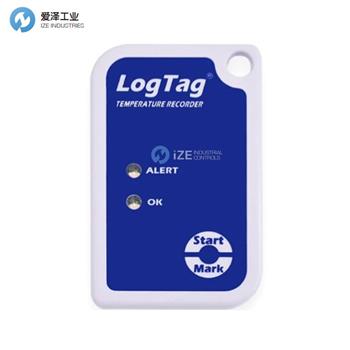

The LogTag TRIX-8 is a versatile, wide range, multi-trip Temperature Logger, featuring high-resolution temperature readings over a measurement range of -40°C to +85°C (-40°F to +185°F). Enclosed in a robust and durable polycarbonate case, the TRIX-8 features a real-time clock, which provides date/time stamps for each temperature reading.
Using the LogTag Interface and the freely available companion software LogTag Analyzer, the LogTag is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator. Readings are downloaded using LogTag Analyzer, which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.
The LogTag TRIX-8 complies with the relevant international standards for temperature monitoring devices, such as FCC, CE, C-TICK, TüV, EN12830, WHO PQS and RoHS. This not only demonstrates the quality of the LogTag TRIX-8, but underlines its suitability for temperature monitoring applications where accuracy and consistency are required.
