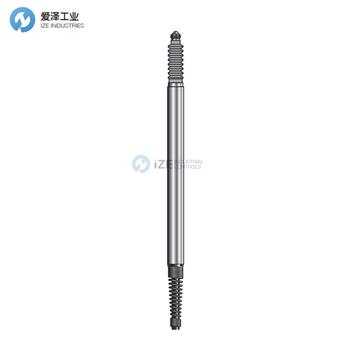

SOLARTRON傳感器AT/5/S技術參數
Product type | Analogue LVDT |
Axial cable outlet:Feather Touch | AT/5/S |
Measurement | |
Measurement Range (mm) | ±5 |
Accuracy1 (% of reading or μm) | 0.5, 5μm |
Resolution | Digital: User selectable to <0.1μm |
Repeatability (μm) | 0.15 |
Pre-travel (mm) | 0.15 |
Post-travel (mm) | 0.85 |
Pre-travel Adjustment range (mm) | 1.5 |
Tip Force: Standard/Vacuum ±20% (N) | 0.7 @ mid position |
Tip Force: Feather Touch ±20% (N) | 0.3 @ mid position |
Temperature Coefficient %FS/°C | 0.01 |
Mechanical | |
Body Diameter (mm) | 8h6 |
Electrical Interface (Plugged) | |
Sensitivity (mV/V/mm ±5%) | 40 |
Energising Current (mA/V±5%) | 2 |
Electrical Interface (Unplugged) | |
Sensitivity (mV/V/mm ±5%) | 105 |
SOLARTRON傳感器AT/S系列介紹
Feather測頭具有極低的針尖力以及用戶可選擇的高分辨率和可重復性選項，是測量精密高精度組件的理想選擇。 長壽命軸承可確保在短周期內生產大量零件的行業中，通過數百萬次循環可保持探針的性能。
With very low tip forces coupled with user selectable options of high resolution and repeatability, Feather Touch Probes are ideal for the gauging of delicate high precision components. Long life bearings ensure that the performance of the probes are maintained through millions of cycles in industries producing high volumes of components on short cycle times.
SOLARTRON傳感器AT/S系列其他常用型號：
SOLARTRON AT/1/S
SOLARTRON AT/1/SH
SOLARTRON AT/1.5/S
SOLARTRON AT/1.5/SH
SOLARTRON AT/2.5/S
SOLARTRON AT/2.5/SH
SOLARTRON AT/5/S
SOLARTRON AT/5/SH
SOLARTRON AT/10/S
SOLARTRON AT/10/SH
SOLARTRON sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SOLARTRON傳感器AT/5/S的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SOLARTRON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
