KUBLER編碼器LI50系列技術參數
Technical data Mechanical characteristics | |
Maximum speed | 12000 min |
Protection | model 1:IP67 acc. to EN 60529 |
Working temperature | -20°C ... +80°C [-4°F ... +176°F |
Shock resistance | 5000 m/s2, 1 ms |
Vibration resistance | 300 m/s2, 10 ... 2000 Hz |
Pole gap | 5 mm from pole to pole |
Housing (sensor head) | aluminum |
Cable | 2 m [6.56‘] long, PUR 8 x 0.14 mm2 [AWG 26], shielded, may be used in trailing cable installations |
Status LED | green：pulse index |
CE compliant acc. to | EMC guideline 2014/30/EU |
KUBLER編碼器LI50系列
由于其安裝深度僅為16 mm，無軸承磁性旋轉編碼器RI50 / Limes LI50包括磁環和傳感器頭，非常適合空間非常狹窄的工廠和機械。非接觸式測量原理即使在惡劣的環境條件下也可以無錯誤使用，并確保較長的使用壽命。與測量系統RI20 / Limes LI20相比，此處還實現了一個零脈沖。
堅固的鋁制外殼和不銹鋼蓋，適用于室外，適用溫度范圍廣，并帶有抗紫外線電纜。 IP68 / IP69k保護，特殊的封裝技術以及經過測試的抗循環濕氣和濕熱的特性，即使在露天室外使用，也具有最高的可靠性。

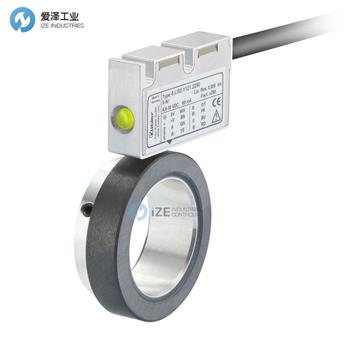

Thanks to its installation depth of only 16 mm, the bearingless magnetic rotary encoder RI50 / Limes LI50, comprising a magnetic ring and sensor head, is ideally suited for plants and machinery where space is very tight. The non-contact measuring principle allows for error-free use even under harsh environmental conditions, as well as ensuring a long service life. In contrast to measuring system RI20 / Limes LI20, a single zero pulse is also implemented here.
For outdoor use with extremely sturdy aluminum housing and stainless steel cover, wide temperature range as well as a UV-resistant cable. IP68 / IP69k protection, special encapsulation technology and tested resistance to cyclic humidity and damp heat offer the highest levels of reliability, even in exposed outdoor use.

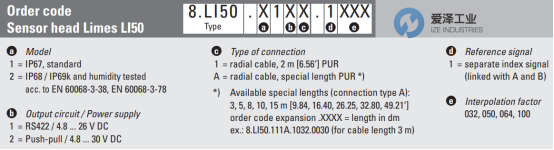

KUBLER編碼器LI50系列選型
KUBLER編碼器LI50系列其他常用型號：
KUBLER 8.LI50.111A.2250.0050
KUBLER 8.LI50.111A.1032.0030
KUBLER 8.LI50.112A.2250.0050
KUBLER 8.LI50.111A.2250.0300
KUBLER 8.LI50.111A.1100.0050
KUBLER 8.LI50.112A.2250.0100
KUBLER Encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KUBLER編碼器8.LI50.111A.2250.0050的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KUBLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
KUBLER編碼器LI50系列8.LI50.111A.2250.0050介紹及選型
