PEAKTRONICS信號反饋變送器模塊XMA-105技術參數
OPERATING VOLTAGE | 11 to 32 VDC |
OPERATING CURRENT | (not including output current and feedback pot) 5 to 8 mA |
INPUT SPECIFICATIONS | |
Zero (output = 4.0mA) | 0.2 to 5 VDC |
Span (output = 20.0mA) | 0.62 to 10 VDC |
Zero-to-Span Differential | 0.42 VDC minimum |
Input Impedance | 200K ohms |
FEEDBACK POTENTIOMETER | |
(total resistance) | 1K to 10K ohms |
ENVIRONMENTAL | |
Operating Temperature | -40 to 65 °C |
Storage Temperature | -40 to 85 °C |
Relative Humidity | 0 to 90 % (non-condensing) |
PEAKTRONICS信號反饋變送器模塊XMA-105介紹

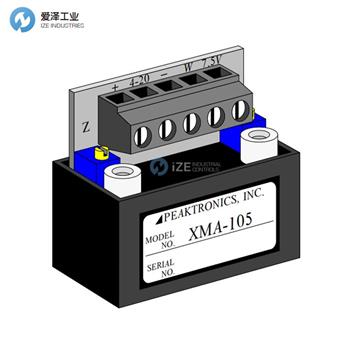

The Peaktronics XMA-105 is a 4-20mA transmitter that is specifically designed for use with the Peaktronics AMC, LRC, SVC, and DMC series controllers. When a feedback potentiometer of 1K to 10K ohms is used with the AMC/LRC/SVC/DMC unit, the XMA-105 can be used to provide a 4-20mA signal that is proportional to the potentiometer value. Since the feedback potentiometer monitors the position of an actuator, the 4-20mA signal can be used by a remote instrument to monitor or display actuator position. A 1-5V signal can be obtained by connecting a 250 ohm load resistor between the "4-20" and "-" terminals.
The zero and span adjustments on the XMA-105 allow the user to scale the 4-20mA signal to correspond with the zero and span positions set by the AMC/LRC/ SVC/DMC controller. After the AMC/LRC/SVC/DMC has been set, position the actuator to the zero position and adjust the XMA-105 zero to achieve the desired output (usually 4 mA). Then position the actuator to the span position and adjust the XMA-105 span to achieve the desired output (usually 20 mA). Repeat this process until the zero and span positions yield the desired output from the XMA105 without further adjustment.
Peaktronics XMA-105是一款4-20mA變送器，專門設計用于Peaktronics AMC，LRC，SVC和DMC系列控制器。當AMC / LRC / SVC / DMC單元使用1K到10K歐姆的反饋電位計時，XMA-105可用于提供與電位計值成比例的4-20mA信號。由于反饋電位計監視執行器的位置，因此遠程儀器可以使用4-20mA信號來監視或顯示執行器的位置。通過在“ 4-20”和“-”端子之間連接一個250歐姆的負載電阻，可以獲得1-5V的信號。
XMA-105上的零位和跨度調整允許用戶縮放4-20mA信號，以與AMC / LRC / SVC / DMC控制器設置的零位和跨度位置相對應。設置了AMC / LRC / SVC / DMC之后，將執行器定位到零位并調整XMA-105零位以達到所需的輸出（通常為4 mA）。然后將執行器定位到跨度位置，并調整XMA-105跨度以達到所需的輸出（通常為20 mA）。重復此過程，直到零位和跨度位置無需進一步調整即可從XMA105獲得所需的輸出。
PEAKTRONICS信號反饋變送器模塊XMA系列選型
PEAKTRONICS信號反饋變送器模塊其他常用型號：
PEAKTRONICS XMA-105
PEAKTRONICS XMA-106
PEAKTRONICS XMA-107
PEAKTRONICS Feedback signal transmitter module NEW + ORIGINAL+ ONE YEAR WARRANTY
