BINMASTER液位指示器MAXIMA+技術參數
Specifications | |
Power Requirements: | 24/115/230 VAC, 50/60 Hz; 12/24 VDC, 60/35 mA |
Output Relay: | DPDT 10 Amp, 250 VAC |
Status Indicator Relay: | SPDT 10 Amp, 250 VAC (solid state relays optional) |
Ambient Operating Temp: | —40°F to +185°F (-40°C to +85°C) |
Process Temp: | Up to +400°F (204°C) |
Pressure: | 1/2 micron, 30 PSI |
Approvals & Certifications: | CSA/US Class II, Groups E, F, & G |
Enclosure Type: | NEMA 4X, 5, 9 &12 |
Enclosure: | Die cast aluminum, USDA approved powder coat finish |
Mounting: | 1-1/4” NPT |
Conduit Connection: | 3/4” NPT |
Shaft and components: | Stainless steel |
BINMASTER液位指示器MAXIMA+產品介紹
BINMASTER優質的旋轉式液位指示器具有完整的故障安全系統，該系統可警告斷電，電機故障或電子設備故障-使其可用于過程控制。MAXIMA +適用于各種散裝固體，包括粉末，顆?；蝾w粒狀物料，它通過可聽見的喇叭或連接到設備的燈光提醒用戶裝箱狀態。當槳停止旋轉并處于遮蓋狀態時，會發出通知；當清空儲物箱且未覆蓋槳葉時，槳葉開始旋轉時，它將再次發出警報。MAXIMA +可以使用軸延伸部分安裝在垃圾箱的側面或垃圾箱的頂部。為了延長電動機壽命并優化能源成本，一旦材料與槳板接觸，軸停止轉動，MAXIMA +的電動機就會“斷電”。BINMASTER提供單葉片和三葉片設計的多種不銹鋼和聚乙烯槳葉，以適應廣泛的行業和應用。

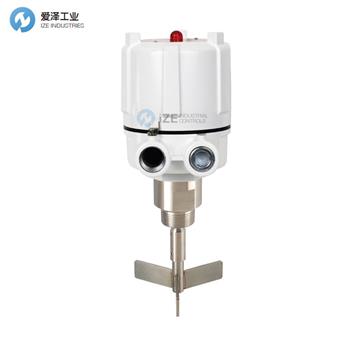

BinMaster’s most advanced rotary level indicator features a complete fail-safe system that alerts to the loss of power, failure of the motor, or failure of the electronics – allowing it to be used for process control. Appropriate for a wide variety of bulk solids including powders, pellets, or granular materials, the MAXIMA+ alerts the user to bin status via an audible horn or light wired to the unit. Notification occurs when the paddle stops rotating and is in a covered condition; it alerts again when the paddle begins to rotate as the bin is emptied and the paddle is uncovered. The MAXIMA+ can be mounted on either the side of the bin or at the top of a bin using a shaft extension. To prolong motor life and to optimize energy costs, the motor of the MAXIMA+ will “de-energize” once the shaft stops turning when material comes into contact with the paddle. BinMaster offers a variety of stainless steel and polyethylene paddles in single and three-vane designs to accommodate a wide range of industries and applications.
BINMASTER液位指示器其他常用型號：
BINMASTER BMRX-115VAC
BINMASTER BMRX-230VAC
BINMASTER BMRX-24VAC
BINMASTER BMRX-24VDC
BINMASTER MAXIMA+24/115/230VAC
BINMASTER MAXIMA+12-24VDC
BINMASTER ROTARY LEVEL INDICATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
