RODI密度指數測試系統EZ SDI系列參數介紹
Physical and Mounting Characteristics | |
Dimensions |
|
Weight | 13 lbs EZ SDI? / 18lbs EZ SDI-4? |
Power | 120-240 VAC, 50-60 Hz, 0.8 Amps |
Environment | 0-50°C 10-90% RH (non condensing),NEMA 4X |
Connections | Sample – 1/4” nylon or ss tubingDrain – Open |
Sample Condition | 70 to 1200 psi, 5-50 °C |
RODI密度指數測試系統EZ SDI系列介紹
EZ SDI?由微處理器控制，是全自動的。該顯示器位于NEMA 4X外殼中，可永久安裝在工業環境中。濾鏡架允許使用許多供應商提供的標準25mm測試濾鏡。更換介質是一個兩分鐘的過程，只需按一下按鈕即可開始測試。
閃爍的指示燈會通知操作員測試已完成。然后可以從LCD顯示屏讀取SDI結果。顯示器配備了LED背光燈，可以在任何環境下輕松查看結果。
測試壓力由高質量的內部壓力調節器控制，該調節器可以承受高于1000 psi的入口壓力。這樣就可以從反滲透進料泵的高壓側采集樣品，從而省去了笨重且昂貴的樣品增壓泵。測試壓力會不斷顯示在LCD上，并且EZ SDI?警報會在壓力超出ASTM規范的情況下中止測試。

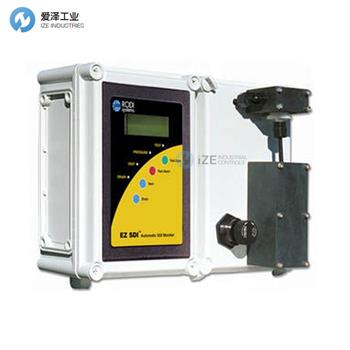

The EZ SDI? is microprocessor controlled and fully automatic. The monitor is housed in a NEMA 4X enclosure and is designed for permanent installation in industrial environments. The filter holder allows the use of standard 25mm test filters available from a number of suppliers. Replacing the media is a two-minute process and the test is initiated with the press of a button.
A blinking indicator notifies the operator of the completion of the test. The SDI results may then be read from the LCD display. The display is equipped with an LED backlight making it easy to see the results in any environment.
The test pressure is controlled with a high-quality internal pressure regulator which can accommodate inlet pressures above 1000 psi. This allows the sample to be taken from the high pressure side of the RO feed pump thus eliminating cumbersome and expensive sample boost pumps. The test pressure is constantly displayed on the LCD and the EZ SDI? alarms and aborts the test if the pressure falls outside of ASTM specifications.
RODI密度指數測試系統EZ SDI系列其他常用型號：
RODI EZ SDI?4
RODI EZ SDI?1
RODI EZ SDI
