FOXBORO電導率電極871EC-sp0-3V技術參數
Description | 871EC = Electrodeless Conductivity Sensor |
Sensor Body Material, Temperature Limits, and Thermistor or RTD | SP = |
Sensor Wetted Metallic and Mounting Parts | 0 = None - Universal Mount |
Optional Selections Cable Options | 3 = Nonstandard Integral Cable; specify length from 1 to 30 m (3 to 100 ft) (c) -3 |
Optional Selections (Cont.) O-Ring Options | V = Viton O-rings |

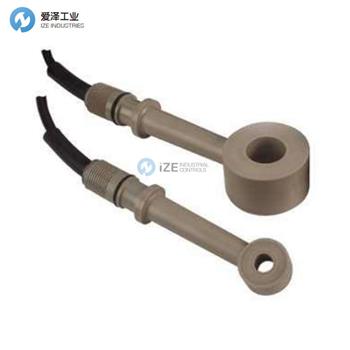

FOXBORO電導率電極871EC系列介紹
871EC型無極電導率傳感器與各種支持的傳感器附件一起，可在大多數類型的過程液體中提供抗污垢測量。由于無電極技術和創新的傳感器設計，將實現多年的連續運行和有意義的溶液電導率指示。
871EC傳感器可與875EC智能分析儀，870ITEC智能變送器，873EC和873AEC分析儀以及870EC變送器一起使用。傳感器有多種配置和適合各種條件的材料。
傳感器測量溶液回路中的感應電流。他們獲得專利的專利設計包括封裝在傳感器中的兩個或三個環形纏繞線圈，這些線圈浸沒在溶液中。 施加到一個環形線圈的交流信號在第二個線圈中感應出一個電流，該電流與溶液的電導率成正比。
The Model 871EC Electrodeless Conductivity Sensors, in conjunction with a variety of supporting sensor accessories, provide fouling-resistant measurements in most types of process liquids. Because of the electrodeless technique and innovative sensor design, years of continuous operation and meaningful indication of solution conductivity will be realized.
The 871EC Sensors are used with 875EC Intelligent Analyzers, 870ITEC Intelligent Transmitters, 873EC and 873AEC Analyzers, and 870EC Transmitters. Sensors are available in a number of configurations and materials suitable for a variety of conditions.
The sensors measure an induced current in a loop of solution. Their patented proprietary design comprises two or three toroidally wound coils encapsulated within the sensor which is immersed in the solution. An ac signal, applied to one toroidal coil, induces a current in the second coil that is directly proportional to the conductance of the solution.

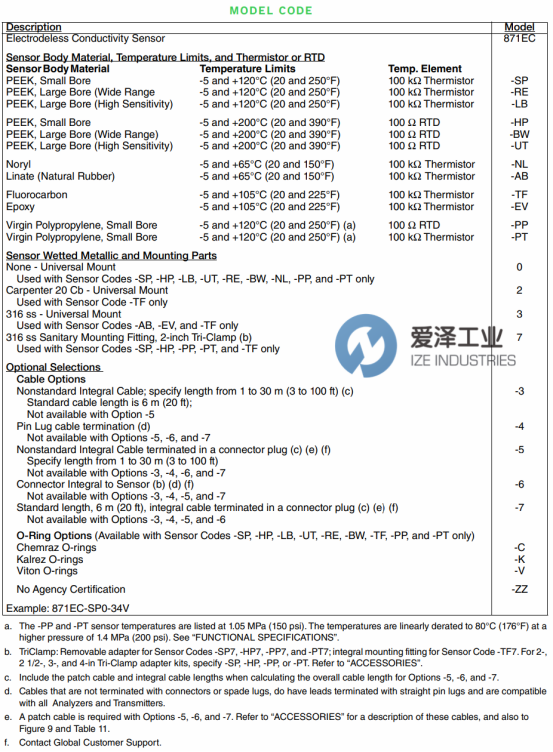

FOXBORO電導率電極871EC系列選型
FOXBORO電導率電極871EC系列其他常用型號：
FOXBORO 871EC-sp0-3V
FOXBORO 871EC-TF2-3V
FOXBORO 873EC-BIYGZ-7
FOXBORO 871EC-TF7-4
FOXBORO 871EC-TF7-3
FOXBORO 871EC-EV3-A
FOXBORO 871EC-PP0-4
FOXBORO 871EC-SP0-3V
FOXBORO 871EC-LB0-4
FOXBORO 871EC-PN3
FOXBORO 871EC-HPO
FOXBORO 871EC-NL0-3
FOXBORO 871EC-SP0-4
FOXBORO Conductivity Sensors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FOXBORO電導率電極871EC-sp0-3V的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn/browse our website: www.wap.pnxqid.cn.
FOXBORO電導率電極871EC系列871EC-sp0-3V技術參數及選型
