BINMASTER旋轉液位指示器BMRX系列技術參數
Supply: | 12 VDC to 24 VDC |
Supply Tolerance: | ±10% |
Load: | 5.5 VA |
Ambient Temperature: (Electronics) | -40°F to +185°F (-40°C to +85°C) |
Enclosure: | NEMA 4X IP66 |
DPDT Relay Output: | 10 Amps 250 VAC |
Fail-Safe: | Switch selectable “High” or “Low” level modes |
Mounting: | 1-1/4” NPT |
Conduit Entry: | 3/4” NPT |
Shaft Seal: | 1/2 micron, 30 PSI |
BINMASTER旋轉液位指示器BMRX系列介紹
BinMaster BMRX是一個旋轉槳式水平傳感器，為散裝固體提供可靠的點水平檢測，包括粉末、顆粒和顆粒材料。該裝置有一個開關可選擇的故障安全繼電器開關，在斷電時將降至“安全”狀態。
BMRX電機以1轉/分的轉速旋轉驅動軸和劃槳。當容器材料填充到指示槳的水平時，材料會導致槳停止旋轉，指示覆蓋狀態。當材料脫落時，槳再次開始旋轉，以表明未覆蓋的狀態。

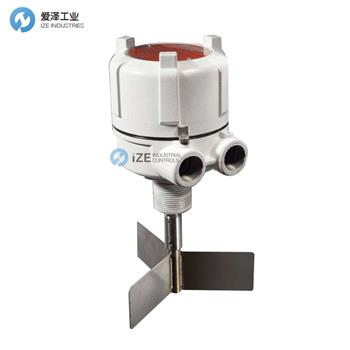

The BinMaster BMRX is a rotating paddle style level sensor which provides reliable point level detection for bulk solids, including powders, pellets, and granular materials. The unit has a switch selectable fail-safe relay that will fall to a "safe" condition in the event of a power failure.
The BMRX motor rotates the drive shaft and paddle at 1 RPM. When the vessel material fills to the level of the indicator paddle, the material causes the paddle to stop rotating indicating a covered condition. When the material falls away, the paddle starts rotating again to indicate an uncovered condition.
BINMASTER旋轉液位指示器BMRX系列其他常用型號：
BINMASTER BMRX-24VDC
BINMASTER BMRX-115VAC
BINMASTER BMRX-230VAC
BINMASTER BMRX-24VAC
