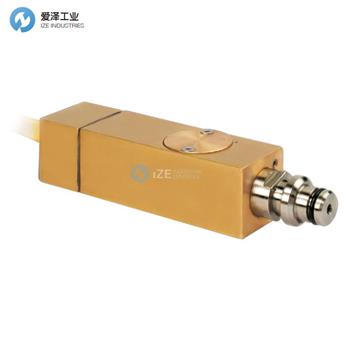

CTTEMAG壓力傳感器PCC-3產品參數
Specification | |
Electrical parameters | |
Admissible input parameters | Ui = 30 V AC/DC, Ii = 2 A, Li = 7 μH |
Output signal | switchable contact: 2A/30V AC/DC or contact-switchable resistance |
Connecting resistance of the connection | 5 × 105 cykli |
Metrological parameters | |
Pressure setup range | 0,1 ... 45 MPa |
Maximum pressure | 60 MPa |
Accuracy of threshold pressure setup | 0.01 |
Histeresis | 5% of the set threshold pressure |
Process connection | Stecko DN10, metric thread or unified screw thread |
Working conditions | |
Working temperature | +5°C ... +60°C |
Medium | oil, oil-in-water emulsion |
Mechanical parameters | |
Size | 30 × 135 mm |
Weight | about 0,5 kg |
Cable length | according to client's requirements, max. 10 m |
Casing protection degree | IP65 |
CTTEMAG壓力傳感器PCC-3產品介紹
適應在礦井地下的惡劣條件下工作
發出液壓信號，指示液壓系統中提供油或水包油乳液的介質的超壓值
測量范圍0,1-45MPa
Adapted to work in the difficult conditions in the underground of mines
Signalling the exceeded pressure values of the medium in hydraulic systems supplied with oil or oil- in-water emulsion
Measuring range 0,1-45 MPa
CTTEMAG壓力傳感器PCC-3其他常見型號：
CTTEMAG RCC-2
CTTEMAG PCC-3
CTTEMAG CPW-1
CTTEMAG CVD-1000
CTTEMAG SEMI-2
CTTEMAG CPO-2/L/T
CTTEMAG ZEW-1
CTTEMAG PAC-1
CTTEMAG CT-90/PT
