NEXON溫度傳感器TN3000系列技術參數
Specification | |
Measuring range | |
TN3000 | -50…125℃ |
Supply voltage | 12…30Vdc |
No-load current consumption | ≤30mA, 24Vdc powered by |
Switch output | |
Output type | Push-pull (compatible withPNPandNPN), normally open and normally closed can be set |
S1,S2Output current | <500mA |
Response time | <10ms |
Voltage drop | <1V |
Switching Accuracy | ≤±0.5%Range |
Current mode analog output | |
Output type | Third line4…20mA |
LoadRA | RA≤0.5KΩ |
Linearity | ≤±0.5%Range |
Voltage analog output | |
Output type | Third line0…5V |
LoadRA | RA>10KΩ |
Linearity | ≤±0.5%Range |
Wiring protection | Reverse phase, overload, short circuit protection |
Show | |
Design | Red 4 bit 8mm high brightnessled |
Display range | -1999…9999 |
Accuracy | ≤±0.5%Range |
Stability (annual drift) | ≤±0.3%Range |
Temperature | |
Medium temperature | -50…125℃ |
Ambient temperature | -40…85℃ |
Storage temperature | -40…100℃ |
Probe withstand voltage | 200bar |
Material | |
Head case | Zinc alloy |
Case | Stainless steel304 |
Media contact part | Stainless steel316 |
Degree of protection | IP67 |
Outgoing way | M12×1Connector |
Process connection | G1/4external threadEDseal |

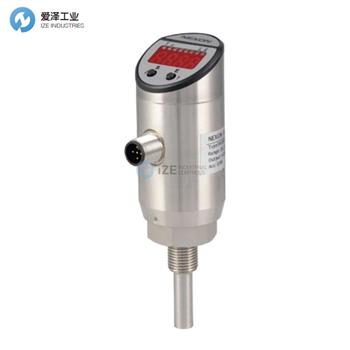

NEXON溫度傳感器TN3000系列產品介紹
TN3000 采用高精度傳感器測量溫度，輸出信號處理為標準電信號輸出顯示。全金屬外殼；可旋轉高亮 LED 顯示屏；雙鍵設計和友好的菜單；多種工藝連接可選：3 個 30° 可旋轉指示器。
? 智能產品
? 4 位 LED 數字顯示屏
? 全金屬外殼
? PNP/NPN 可編程
? 可旋轉指示器
TN3000 measures the temperature with a high-accuracy sensor and output signal is processed to standard electricai signal for outputing and dispiaying. All-metal housing; rotatable highlight LED display; dual keys design and friendly menu; multiple process connections selectable: 3 30° rotatable indicator.
? Smart product
? 4-digit LED digital display
? All-metal housing
? PNP/NPN programmable
? Rotatable indicator
NEXON溫度傳感器TN3000系列其他常見型號：
NEXON TN3000/21G12MSM500D8
NEXON TN3000/21G14MSM010D8
NEXON TN3000/21G14MSM035D8
NEXON TN3000/21G14MSM085D8
NEXON TN3000/21G14MSM135D8
NEXON TN3000/21G14MSM235D8
NEXON TN3000/21G14MSM335D8
NEXON TN3000/22G14MSM010D8
NEXON TN3000/22G14MSM035D8
NEXON TN3000/22G14MSM085D8
NEXON TN3000/22G14MSM135D8
NEXON TN3000/22G14MSM235D8
NEXON TN3000/22G14MSM335D8
NEXON TEMPERATURE SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
