DRUCK壓力校驗儀DPI611系列技術參數
General specifications | |
Display | Size: 110 mm (4.3in) diagonal. 480 x 272 pixels. LCD colour display with touch screen |
Languages | English (default), Chinese, Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish |
Operating temperature | -10o to 50oC (14o to 122oF). 0o to 40oC (32o to 104oF) when powered from optional mains adaptor IO620-PSU |
Storage temperature | -20o to 70oC (-4o to 158oF) |
Ingress protection | IP 54. Protected against dust and splashing water from any direction |
Humidity | 0 to 90% RH none condensing. To Def Stan 66- 31, 8.6 cat III |
Shock / vibration | BS EN 61010-1:2010 / MIL-PRF-28800F CLASS 2 |
Altitude | Up to 2000m |
EMC | BS EN 61326-1:2013 |
Electrical safety | BS EN 61010-1:2010 |
Pressure safety | Pressure Equipment Directive - Class: Sound Engineering Practice (SEP) |
Enclosure materials | Polycarbonate, polyamide, polypropylene, acrylic, cotton |
Approved | CE marked |
Size (L:W:H) | 270 x 130 x 120mm (10.6 x 5.1 x 4.7 in) |
Weight | 1.96Kg (4.3lbs) including batteries |
Power supply | 8 x AA alkaline batteries Optional mains adaptor P/N IO620-PSU 100 – 260V +/- 10%, 50 / 60Hz AC, Output DC V=5A, 1.6A |
Battery life | 18 to 26 hours depending on functions |
Connectivity | USB type A, USB type mini B |
DRUCK壓力校驗儀DPI611系列介紹
Druck的DPI611壓力校準器將壓力產生，環路功率和信號測量功能結合在一起，使它的前任產品具有所有的便利性和可靠性，而精度卻是其兩倍，尺寸僅為其一半。該校準器提供最先進的模擬和數字微電子產品，兩者都有助于提高精確度和處理能力，以獨特的易于使用的界面提供一流的壓力和電氣性能。
輕松產生壓力-DPI 611可以產生從95％真空到20 bar / 300 psi氣壓的壓力范圍。選擇器允許用戶在泵的幾個沖程中從真空轉換為壓力，從而產生所需的壓力。使用內置的音量調節器進行精細調節，并使用精密排氣閥實現下降的校準點。
特點與優勢
?DPU611是一款便攜式壓力校準器，手持且重量輕-非常適合多種應用和環境
?獨立的壓力測試和校準系統
?比DPI 611小50％，輕33％
?全彩色觸摸屏界面，附帶儀表板，快速任務和收藏夾等應用程序
?最先進的模擬和數字微電子技術，有助于減小PCA的尺寸
?為任何給定的應用程序設置三項功能
?計算合格？失敗錯誤，記錄結果并與校準軟件連接
?由堅固，堅固和防水的材料組成
?快速安裝壓力適配器系統，無需工具或密封
?可以調節音量以進行精確的壓力設置
?Druck的DPI611具有壓力和真空兩種選擇，因此被認為是多功能校準器
?用于測量的電氣連接為mA，mV和V
?手持式壓力校準器具有用于精密針閥的壓力排放閥，可進行精細控制

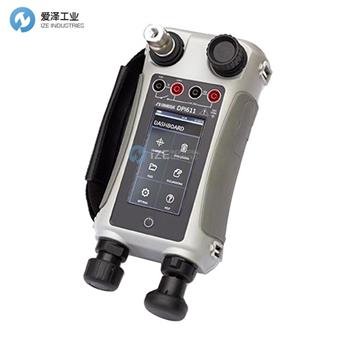

Druck Pressure Calibrator - DPI611
Combing pressure generation, loop power and signal measurement, Druck's DPI611 pressure calibrator facilitate all the convenience and reliability of its predecessor whilst being twice as accurate and half the size. The calibrator offers state-of-the-art analogue and digital microelectronics, both of which contribute to precision accuracy and processing power to provide a class-leading pressure and electrical capability with a unique simple-to-use interface.
Pressure generation made easy - The DPI 611 can generate pressure ranges from 95% vacuum to 20 bar/300 psi pneumatic pressure. A selector allows the user to convert from vacuum to pressure with a few strokes of the pump, generating the required pressure. Fine adjustment is made with the built-in volume adjuster and falling calibration points are achieved with the precision vent valve.
Features & Benefits
? The DPU611 is a portable pressure calibrator, hand-held and lightweight - making it perfect for a multitude of applications and environments
? Self-contained pressure test and calibration system
? 50% smaller and 33% lighter than the DPI 611
? Full-colour touch screen interface accompanied by applications such as DASHBOARD, quick TASK and FAVOURITES storage
? State-of-the-art analogue and digital microelectronics which helps to reduce the size of PCA
? Three touches to set up for any given applications
? Calculates PASS? FAIL errors, documents result and interfaces with calibration software
? Comprised of rugged, robust and waterproof materials
? Quick to fit pressure adaptor system, with no tools or seals required
? The volume can be adjusted for precise pressure setting
? Druck's DPI611 is considered a multifunction calibrator due to their being both pressure and vacuum selection
? The electrical connection for measuring are mA, mV and V
? The handheld pressure calibrator features a pressure vent valve for precision needle valve for fine control
DRUCK壓力校驗儀DPI611系列其他型號：
DRUCK DPI611-05G
DRUCK DPI611-07G
DRUCK DPI611-10G
DRUCK DPI611-11G
DRUCK DPI611-13G
