E+H電導率測量儀CLD134系列技術參數
Specifications | |
Measurement range | 100 μS/cm to 2000 mS/cm Cell constant k : 6.3 1/cm |
Measuring principle | Inductive conductivity measurement |
Design | Hygienic design with FDA certified virgin PEEK body including all hygienic certifications |
Material | In contact with medium: Virgin PEEK |
Process temperature | Max. 125 °C (max. 257 °F) |
Process pressure | 12 bar abs up to 90 °C (174 psi abs up to 194 °F) |
Temperature sensor | Pt 1000 |
Connection | Dairy pipe, aseptic-fitting, Clamp ISO 2852, SMS-2", Varivent N DN 40-125, Neumo Biocontrol D50 |
Ingres protection | IP67 |
Output / communication | Conductivity, concentration and temperature. 0/4 to 20 mA, HART, Profibus |
E+H電導率測量儀CLD134系列介紹
Smartec CLD134 是用于食品飲料和生命科學行業的感應電導率測量系統。變送器和傳感器的組合是無干擾的，特別易于使用。由于其食品級原始 PEEK 主體、無縫和無縫設計以及衛生證書，它滿足最高的衛生和無菌要求。因此，Smartec CLD134 是確保產品和工藝達到高安全性和質量的理想封裝。
獨特的衛生設計避免二次污染
具有衛生和無菌應用所需的所有衛生證書
根據 USP VI 級認證的生物相容性
符合 EG 2023/2006 和 1935/2004
適用于就地清洗 (CIP) 和就地滅菌 (SIP)
封裝式無縫設計，經久耐用

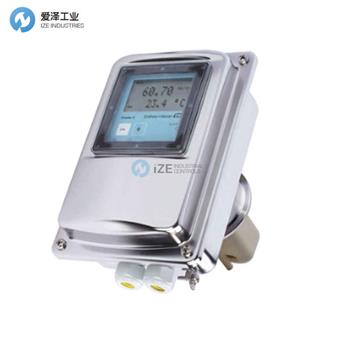

Smartec CLD134 is a measuring system for inductive conductivity in the food & beverage and life sciences industries. The combination of a transmitter and a sensor is interference-free and especially easy-to-use. It meets the highest hygienic and sterile demands thanks to its food-grade virgin PEEK body, its jointless and creviceless design and its hygienic certificates. Smartec CLD134 is therefore the ideal package to ensure the highest safety and quality of your products and processes.
Unique hygienic design avoids recontamination
With all hygienic certificates required in hygienic and sterile applications
Certified biocompatibility according to USP class VI
Compliant with EG 2023/2006 and 1935/2004
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
Durable thanks to encapsulated, jointless design
E+H電導率測量儀CLD134系列其他常用型號：
E+H CLD134-SBC530AA1
E+H CLD134-WAA530AA1
E+H CLD134-SMV530AA1
E+H CLD134-SCS130AA1
E+H CLD134-WBC530AA1
E+H CLD134-PAA540AA1
E+H CLD134-WVA430AA1
E+H CLD134-PMV530AA1
E+H CLD134-WSMS30AA1
E+H CLD134-PVA430AA1
E+H CLD134-SVA430AA1
E+H CLD134-PBC530AA1
E+H CLD134-EAA530AA1
E+H CLD134-WCS130AA1
E+H CLD134-PAA530AA1
E+H CLD134-SSMS30AA1
E+H CLD134-SAA530AA1
E+H CLD134-PCS130AA1
E+H CLD134-PSMS30AA1
E+H CLD134-WMV530AA1
E+H CLD134-PVA458AA1
E+H CLD134-PMV548AB1
E+H CONDUCTIVITY COMPACT DEVICE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于E+H電導率測量儀CLD134-PMV548AB1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for E+H products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
E+H電導率測量儀CLD134系列CLD134-PMV548AB1技術參數及介紹
