SEIKOM流量計RLSW8AL V2 LCD M8 F8技術參數
Specification | |
operating voltage | 24V DC |
voltage tolerance | +/- 5% |
Overvoltage category | II |
Signal display, voltage | Net available, green LED |
Power consumption max. | 4VA |
Ambient temperature device | -20..+50°C |
Signal output flow in V burden | 0..10V, linear Ra =10kOhm |
Signal output flow in mA burden | 4..20mA, linear Ra = 0,4kOhm |
Signal output temperature in V burden | 0..10V, linear Ra =10kOhm |
relay output | 1 Interchangeable contact |
Terminals 9/10/11 | open/closed at current |
switching capacity | 250V AC 0,25A |
Minimum switching capacity | 10mA / 5V DC |
Function in flow | Poti switching point |
SEIKOM流量計RLSW8AL V2 LCD M8 F8產品簡介
RLSW8AL是一個空氣流量控制器的微控制器，可監測大約0.5-10/30m/s（高達50.000 mL/h）范圍內的氣體流量或體積流量。
一個4-20毫安（最大負載400歐姆）和0-10伏數據輸出可用作流量的輸出信號。氣流控制器應具有單獨的0-10V/DC輸出信號，用于測量介質溫度。
為了提高操作安全性，在操作過程中對傳感器的功能和錯誤進行監控。

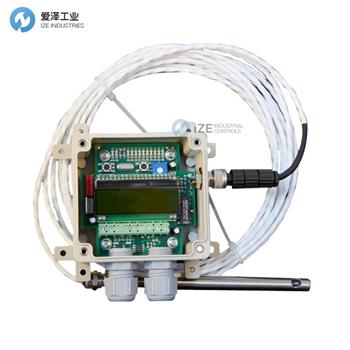

The RLSW8AL is a microcontroller of air flow controllers that monitors gas flow or volume flow in the range of approximately 0,5-10/30m/s (up to 50.000 mL/h).
A 4-20mA (max. load 400Ohm) and 0-10V DCoutput are available as output signals for the flow. The air flow controller shall have a separate 0-10V/DC output signal for the measurement of the medium temperature.
In order to increase operational safety, the sensor is monitored for functions and errors during operation.
SEIKOM流量計RLSW8AL V2 LCD M8 F8其他常見型號：
SEIKOM RLSW8LCDN5001801
SEIKOM RLSW8LCDN130081202
SEIKOM RLSW8LCDN165162503
SEIKOM RLSW8LCDN250303504
SEIKOM RLSW8LCDN30001805
SEIKOM RLSW8LCDN400081201
SEIKOM RLSW8LCDP50162502
SEIKOM RLSW8LCDP130303503
SEIKOM RLSW8LCDP16501804
SEIKOM RLSW8LCDP250081205
SEIKOM RLSW8LCDP300162501
SEIKOM RLSW8LCDP400303502
SEIKOM motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SEIKOM流量計RLSW8AL V2 LCD M8 F8的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SEIKOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
SEIKOM流量計RLSW8AL V2 LCD M8 F8產品參數
