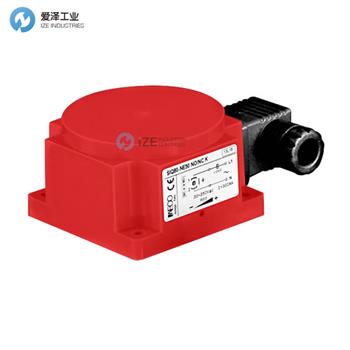

AECO傳感器SIQ80-CE50 NPN NO+NC K產品參數
Specification | |
Switching distance Sn mm | 10 ÷ 60 (sensitivity adjustable) |
Continuous voltage (residual ripple ￡10%) V | 10 ÷ 55 |
Alternating voltage 50÷60 Hz V | |
Hysteresis (%Sn) mm | <10% (Sn = 50 mm) |
Switching frequency Hz | 50 |
Repeatability % of Sn | ￡ 3 |
Max output current mA | 200 |
Min output current mA | |
Max peak current for 20 mS A | |
Absorption at 24Vdc mA | <10 |
Residual current mA | |
Voltage drop (sensor ON) V | <1.8 |
Short circuit protection | Incorporated |
Led | Incorporated |
Temperature limits °C | - 25 / + 70 |
Degree of protection IP | 65 |
Housing | Red plastic |
Cable PVC 2m | |
Connector plug | K (type 12) |
AECO傳感器SIQ80-CE50 NPN NO+NC K產品介紹
該傳感器配有微調器，用于靈敏度調整。當微調器順時針旋轉時靈敏度增加，逆時針旋轉時靈敏度降低。避免使用厚度為1 mm、邊長等于100 mm的方形（FE 37）鋼，其容量大于60 mm。當設置傳感器時，應考慮附近所有其他金屬物體，事實上，當傳感器安裝在正常工作條件下時，建議進行設置。傳感器已預設為50毫米靈敏度。
This sensor is supplied with a trimmer for the sensitivity adjustment. The sensitivity increases when the trimmer is rotated in the clockwise direction and decreases in the anti- clockwise direction. Avoid using for a capacity greater than 60 mm referred to a square piece of (FE 37) steel of 1 mm thickness the side of which is equal to 100 mm. When set- ting the sensor keep in consideration all other metallic objects nearby, in fact setting is suggested to be made when the sensor is installed in the normal working conditions. The sensor is supplied already preset to 50 mm sensitivity.
AECO傳感器SIQ80系列其他常見型號：
AECO SIQ80-CE50 NPN NO+NC
AECO SIQ80-CE50 PNP NO+NC
AECO SIQ80-CE50 NPN NO+NC K
AECO SIQ80-CE50 PNP NO+NC K
AECO SIQ80-BE50 NO
AECO SIQ80-BE50 NC
AECO SIQ80-BE50 NO/NC K
AECO SIQ80-AE50 NO
AECO SIQ80-AE50 NC
AECO SIQ80-AE50 NO/NC K
AECO RECTANGULAR INDUCTIVE SENSORS NEW + ORIGINAL+ ONE YEAR WARRANTY
