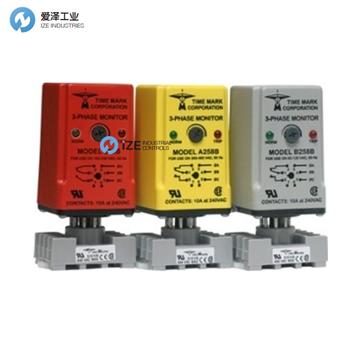

TIME MARK三相監視器258系列說明
258型連續監測三相電力線是否存在異常情況。經過適當調整后，即使存在再生電壓，258型監視器也會檢測負載電機的缺相。
該裝置由固態電壓和相角傳感電路組成，驅動機電繼電器。當施加正確的電壓和相位旋轉時，內部繼電器將通電。故障情況將使繼電器斷電。當故障得到糾正后，顯示器將自動復位（也可以使用手動復位版本）。
258型不需要中性連接，可與Wye或Delta系統配合使用。電壓范圍足夠?qū)?，以便適當調整現有條件。提供TRIP和NORM條件指示器有助于調整和系統故障排除。
The Model 258 continuously monitors 3-phase power lines for abnormal conditions. When properly adjusted, the Model 258 monitor will detect phase loss on a loaded motor even when regenerated voltage is present.
This device consists of a solid-state voltage and phase-angle sensing circuit, driving an electromechanical relay. When correct voltage and phase rotation are applied, the internal relay will energize. A fault condition will de-energize the relay. When the fault is corrected, the monitor will automatically reset (a manual reset version is also available).
The Model 258 does not require a neutral connection and can be used with Wye or Delta systems. Voltage ranges are sufficiently wide to allow for proper adjustment to existing conditions. Both TRIP and NORM condition indicators are provided to aid in adjustment and system trouble-shooting.

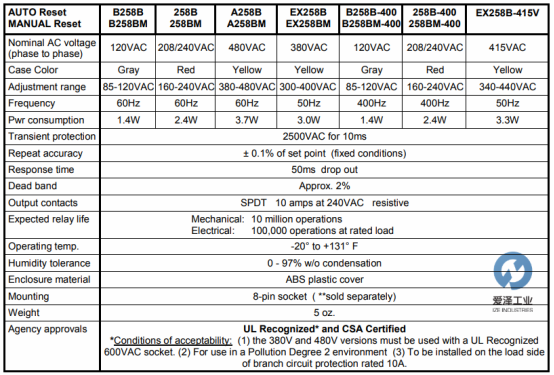

TIME MARK三相監視器258系列選型技術參數
TIME MARK三相監視器258系列 示例EX258B
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件TIME MARK三相監視器型號：
TIME MARK三相監視器B258B
TIME MARK三相監視器B258BM
TIME MARK三相監視器258B
TIME MARK三相監視器258BM
TIME MARK三相監視器A258B
TIME MARK三相監視器A258BM
TIME MARK三相監視器EX258B
TIME MARK三相監視器EX258BM
TIME MARK三相監視器B258B-400
TIME MARK三相監視器B258BM-400
TIME MARK三相監視器258B-400
TIME MARK三相監視器258BM-400
TIME MARK三相監視器EX258B-415V
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TIME MARK三相監視器EX258B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關TIME MARK三相監視器EX258B更詳細的信息或者購買美國TIME MARK相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.wap.pnxqid.cn.
TIME MARK三相監視器258系列說明及選型
