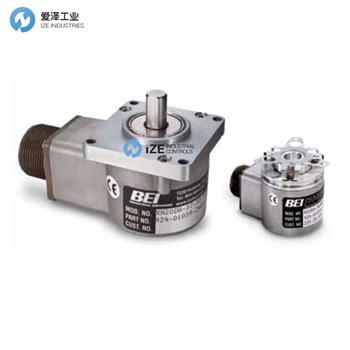

BEI IDEACOD編碼器H20系列技術參數
Specifications | |
Shaft Diameter | 1/4" thru 3/8" and metric versions. Hollow shaft, hub shaft or thu-shaft versions available. |
Flats On Shaft | 0.75" long X 0.03" deep |
Shaft Loading | Up to 40 lbs. axial and 40 Ibs. radial |
Shaft Runout | .001 T.1.R. maximum |
Starting Torque at 25°C | 1.0 in-oz maximum without shaft seal; |
Bearings | 52100 bearing steel |
Shaft Material | 303 stainless steel |
Bearing Housing | Die cast aluminum with idite fnish; stainless steel (special feature) |
Cover | Die cast aluminum with protective fnish(For MS or CS terminationsI, otherwise drawn aluminum with protective finish;stainless-steel (special feature) |
Bearing Life | 1.5X 109 revs at rated load (10,00 hrs at 2500 RPM) |
Maximum RPM | 8,000 RPM (see frequency response, below) |
Moment of Inertia | 2.0X 104 0z-in-sec2 |
Weight | 9 0z. typical |
BEI IDEACOD編碼器H20系列其他常見型號：
BEI-IDEACOD 01039-2918
BEI-IDEACOD H20EB-HS-F12-SS-500-AB-3904R-SCS72-24V-S
BEI-IDEACOD H20EB-25-F12-SS-500
BEI-IDEACOD H20EB-25-F28-SS-500-ABZC-7272-SCS36-28V-S
BEI-IDEACOD H20EB-37-F12-SS-300-ABC-28V/V-SM16-S
BEI-IDEACOD H20EB-37-F28-SS-100-ABC-5V/V-SM16-EX
BEI-IDEACOD H20EB-37-F28-SS-64-A-3904R-SM16-12V-S
BEI-IDEACOD H20EB-37-AB-3904R-SM14-12V
BEI-IDEACOD H20EB-39-F42-SS-256-ABZ
BEI-IDEACOD H20EB-39-F28-SS-10-ABZ-24V/OCR-SM14-S
BEI-IDEACOD H20EB-37-F12-SS-600-A-5V/OCR-EM16-S
BEI-IDEACOD H20EB-25-F12-SS-500-ABZ-28V/OC-SCS96
BEI-IDEACOD H20EB-HS-F12-SS-785-AB-28V/V-SM16-S
BEI-IDEACOD 01039-2263
BEI IDEACOS Encoders NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BEI IDEACOD編碼器01039-2263的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for BEI-IDEACOD products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
BEI IDEACOD編碼器H20系列01039-2263參數介紹
