EMCORE 激光器模塊1754C-34-BB-FC-10規格描述
Parameter | Symbol | Condition | Min | Max | Unit |
Operating Temperature Range | Tc | Continuous | -40 | 85 | °C |
Storage Temperature Range | TSTG | Continuous | -40 | 85 | °C |
Average RF Input Power | - | 60 seconds | - | 62 | dBmV |
Laser Forward DC Current | - | Continuous | - | 150 | mA |
Photodiode Reverse Voltage | VMPD | Continuous | - | 10 | V |
Laser Reverse Voltage, DC | - | Continuous | - | 1 | V |
ESD | - | HBM: R = 1500 Ohm, C = 100pF | -500 | 500 | V |
TEC Current | ITEC | Continuous | -1.5 | 1.5 | A |
Electrical/Optical Characteristics | ||||||
Laser Temperature (TL) = 25oC, IF=IOP, Beginning of Life (BOL) | ||||||
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Operating Case Temperature | TC | - | -40 | 25 | 85 | °C |
6 mW version* | 6 | - | 7.9 | |||
8 mW version* | 8 | - | 9.9 | |||
Optical Output Power | PO | 10 mW version | 10 | - | 15.9 | mW |
16 mW version | 16 | - | 19.9 | |||
Threshold Current | ITH | 25°C, BOL | - | - | 20 | mA |
Slope Efficiency | h | 0.07 | - | - | W/A | |
Operating Current | IOP | BOL | - | - | 120 | mA |
Operating Voltage | VOP | 25°C, BOL | - | - | 2.5 | V |
Wavelength | l | ITU Grid | See page 3 | nm | ||
l Drift over TC Range | ?lOP | If = 60 mA, T = TOP | - | - | 40 | pm |
Laser Adiabatic Chirp | FM | IF = 60 mA, TOP = 25°C | 40 | - | 100 | MHz/mA |
@ 500 MHz | ||||||
Optical Return Loss | ORL | - | 40 | - | - | dB |
Sidemode Suppression Ratio | SMSR | 30 | - | - | dB | |
Optical Isolation | ISO | 25°C | 30 | - | - | dB |
Relative Intensity Noise | RIN | IF = ITH + 70 mA | - | -155 | dB/Hz | |
Nominal Input Impedance | ZIN | - | 22 | 25 | 27 | ù |
MPD Responsivity | rPD | VRM = 5 V | 10 | - | 200 | μA/mW |
MPD Dark Current | ID | IOP = 0 mA | 0.2 | mA | ||
MPD Current Relative to Output Power | - | VRM = 5V, TOP = 25°C | 10 | - | 200 | mA/W |
Thermistor Resistance | RTH | TOP = 25°C | 9.5 | 10 | 10.5 | k? |
Thermistor Temp. Coefficient | TCTH | TOP = 25°C | - | -4.4 | - | % / °C |
TEC Voltage | VTEC | - | -2.5 | - | 3.8 | V |
*For 6 and 8 mW option, lossy splice may be applied. | ||||||
EMCORE激光器模塊1754C-34-BB-FC-10產品介紹
1754c激光模塊是一種用于模擬有線電視應用的密集波分復用（DWDM）激光器。它有一個專門為射頻（RF）和有線電視應用設計的分布式反饋（DFB）設備。1754c激光模塊具有寬的溫度范圍，在惡劣的節點環境和狹窄的發射機設計中具有可靠的性能。它還具有低的絕熱啁啾，以最大限度地提高信號質量在短和長光纖長度。激光優良的固有線性將正交幅度調制（QAM）信道引起的廣播信號退化降至最低。
1754c可用于所有C波段的ITU網格波長。
The 1754C laser module is a Dense Wavelength Division Multiplexing (DWDM) laser for analog CATV applications. It features a distributed-feedback (DFB) device that has been designed specifically for radio frequency (RF) and CATV applications. The 1754C laser module has a wide temperature range for reliable performance in harsh node environments and narrow transmitter designs. It also features low adiabatic chirp to maximize signal quality in short and long lengths of fiber. The laser’s excellent inherent linearity minimizes degradation of the broadcast signals caused by quadrature amplitude modulated (QAM) channels.
The 1754C is available in all C-band ITU grid wavelengths.

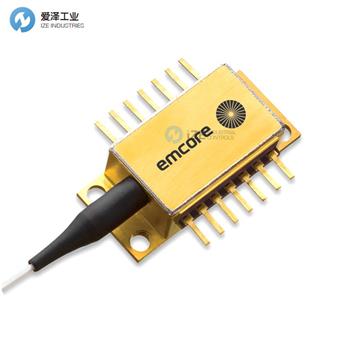

EMCORE 激光器模塊1754C-34-BB-FC-10
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件EMCORE 激光器模塊部分型號：
EMCORE 1754C-18-BB-FC-06
EMCORE 1754C-18-BB-FC-08
EMCORE 1754C-18-BB-FC-10
EMCORE 1754C-18-BB-FC-16
EMCORE 1754C-18-BB-SC-06
EMCORE 1754C-18-BB-SC-08
EMCORE 1754C-18-BB-SC-10
EMCORE 1754C-18-BB-SC-16
EMCORE 1754C-18-RP-FC-06
EMCORE 1754C-18-RP-FC-08
EMCORE 1754C-18-RP-FC-10
EMCORE 1754C-18-RP-FC-16
EMCORE 1754C-18-RP-SC-06
EMCORE 1754C-18-RP-SC-08
EMCORE 1754C-18-RP-SC-10
EMCORE 1754C-18-RP-SC-16
EMCORE 1754C-19-BB-FC-06
EMCORE 1754C-19-BB-FC-08
EMCORE 1754C-19-BB-FC-10
EMCORE 1754C-19-BB-FC-16
EMCORE 1754C-19-BB-SC-06
EMCORE 1754C-19-BB-SC-08
EMCORE 1754C-19-BB-SC-10
EMCORE 1754C-19-BB-SC-16
EMCORE 1754C-19-RP-FC-06
EMCORE 1754C-19-RP-FC-08
EMCORE 1754C-19-RP-FC-10
EMCORE 1754C-19-RP-FC-16
EMCORE 1754C-19-RP-SC-06
EMCORE 1754C-19-RP-SC-08
EMCORE 1754C-19-RP-SC-10
EMCORE 1754C-19-RP-SC-16
EMCORE C-Band DWDM DFB Laser Module NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EMCORE激光器模塊1754C系列 1754C-34-BB-FC-10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EMCORE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
EMCORE激光器模塊1754C系列1754C-34-BB-FC-10產品參數
