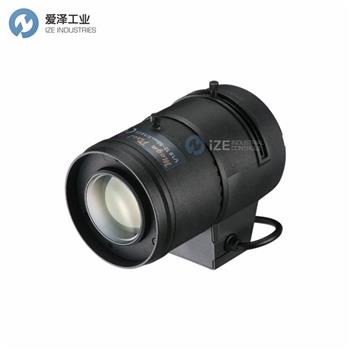

TAMRON鏡頭M118VG1250IR技術參數
Imager Size | 1/1.8" | ||
Mount Type | CS | ||
Focal Length | 12 - 50mm | ||
Aperture Range | F/1.4 - 360 | ||
Field of View Angle (Horizontal x Vertical) | 1/1.8" | Wide | 34.0° x 25.5° |
Tele | 8.5° x 6.4° | ||
1/2" | Wide | 29.9° x 22.4° | |
Tele | 7.5° x 5.6° | ||
1/3" | Wide | 22.4° x 16.8° | |
Tele | 5.6° x 4.2° | ||
Focusing Range | 1.0m - ∞ | ||
Operation | Focus | Manual w/lock | |
Zoom | Manual w/lock | ||
Iris | DC Auto Iris | ||
Back Focal Distance | 9.62mm( in air ) | ||
Wave Length | Visible Light - Near Infrared | ||
Operating Voltage | OPEN : 4V | ||
CLOSE : 0.5V | |||
Weight | 130g 土 5g | ||
Operating Temperature | -20°C - +60°C | ||

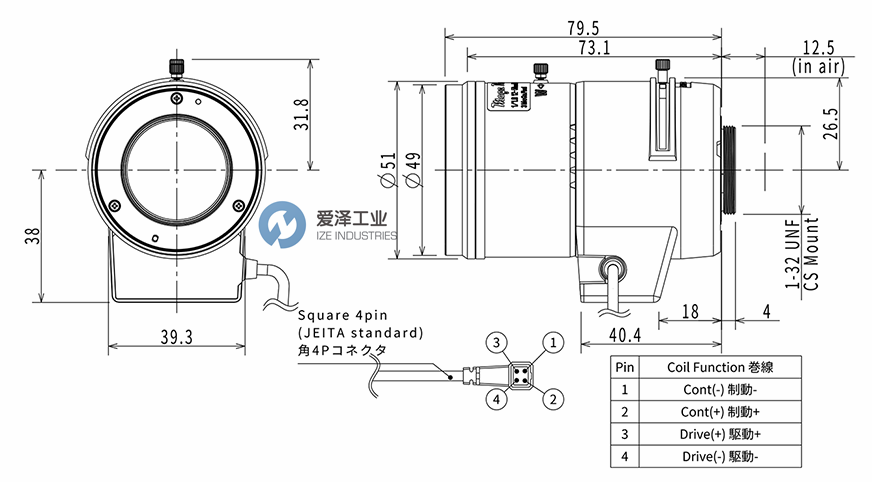

TAMRON鏡頭M118VG1250IR規格尺寸
TAMRON鏡頭其他常用型號：
TAMRON M13VM288IR
TAMRON M13VG288IR
TAMRON M13VP288IR
TAMRON M13VG2713IR
TAMRON M12VM412
TAMRON M12VG412
TAMRON M118VM413IR
TAMRON M118VG413IRCS
TAMRON M118VP413IR
TAMRON M118VG1250IR
