PAVONE稱重變送器DAT400規格描述
Technical Specifications | |
Measuring range: | -0.5 ÷ +3.5 mV/V (-3.9 ÷ +3.9 mV/V optional) |
Input sensitivity: | 0.02 μV/count |
Full scale non-Linearity: | <0.01% |
Gain drift: | < 0.001% FS/°C |
Display: | 6 digit, red LED (7 segments), h 14 mm |
A/D Converter: | 24 bit |
Internal Resolution: | > 16.000.000 points |
Trasducer input voltage: | 5 V (max 6 load cells 350 Ohm) |
Visible resolution (in divisions): | 60000 |
Divisions value (adjustable): | x1, x2, x5 |
Decimal figures range: | 0 ÷ 3 |
Temperature range: | -10 ÷ +50°C (max umidity 85% without condensation) |
Storage temperature: | -20 ÷ +70 °C |
Filter: | 0.1 ÷ 25 Hz |
Logic output: | 2 Solid-state relays, (maximum load 24 Vdc / 100 mA each) |
Logic inputs: | 2 optoisolated 24 Vcc PNP (External voltage) |
Serial port: | USB, RS232C with ASCII or Modbus RTU protocols |
Power supply: | 24 Vcc ±15% - power 5 W |
Regulatory compliance: | EN61326-1, EN55011 and EN55014 for EMC; EN61010-1 for electrical security |
Fieldbus: | Devicenet |
Dimensions and weight: | 106 x 90 x 58 mm (L x H x P); 250 g |
Baud rate: | 2400, 9600, 19200, 38400, 115200 adjustable (for RS232) |
Transmission distance: | 15m (RS232C) |
PAVONE稱重變送器DAT400產品介紹

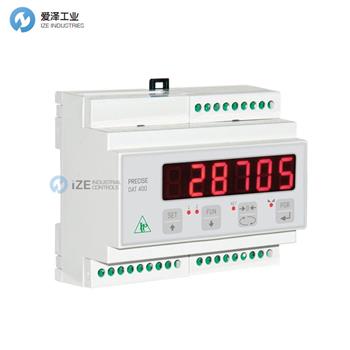

DAT 400 Devicenet 稱重變送器由 Pavone Systems 獨家銷售，保證高性能和可靠性。DAT 400 Devicenet 可與 Tester 1008 一同購買，后者可簡化編程的上傳和下載功能。配置和校準既可以通過前面板設置，也可以通過 PC 設置。該產品可以根據客戶的需求進行定制。它具備用于動態測量的峰值保持功能和螺釘端子塊。PWS: 31/2015
The DAT 400 Devicenet weight transmitter is sold exclusively by Pavone Systems and it guarantees high performance and reliability. DAT 400 Devicenet can be bought in combination with Tester 1008, which facilitates the upload and download functions for the programming. Configuration and calibration can be set up from the front panel or from a PC. The product can be customized according to customer's needs. It has a peak hold function for dynamic measures and screw terminal blocks. PWS: 31/2015
