MALEMA流量開關M-50系列技術參數
Model | M-50 |
Port Size | 1/8" |
Flow Range Water | 1 - 170 CCM (0.0002 - 0.04 GPM) |
Flow Range Air* | 50 - 5000 SCCM |
Connection Type | FNPT |
Available Materials | 316SS, Acrylic, Anodized Aluminum, Brass, PP, PTFE |
Set Point Accuracy | ±10% maximum |
Repeatability | ±2% |
Hystersis | ±15% |
MALEMA流量開關M-50系列介紹
M-50 系列固定設定點流量開關用于監測增加和減少的流量。它們采用單個活動部件來響應系統中的流體（液體或氣體）流動。這些活塞流量開關具有直列式流量設計，適用于眾多行業的廣泛應用。流量開關僅在流體流動確立時才運行。觸發時，M-50 流量開關偏差在目標設定點的 10% 以?xún)?nèi)，重復性為 5%。
M-50 流量開關提供兩種端口尺寸選項（1/8 英寸或 1/4 英寸），并且對于水的流速高達 170 CCM（0.04 GPM），對空氣的流速高達 5,000 SCCM。M-50 Inline 直列式流量開關可以配置為單刀單擲 (SPST) 或單刀雙擲 (SPDT)，為高低設定點提供不同的輸出靈活性。所有 Malema 固定設定點流量開關都可以在出廠前進行專屬設定點校準。此外，Malema 還提供具有預校準設定點范圍的流量開關，以適用于不需要定制校準范圍的應用。
The M-50 Series Fixed Set Point Flow Switches monitor increasing and decreasing flow. They utilize a single moving part which responds to fluid (liquid or gas) flowing within a system. These piston flow switches feature inline flow and are suitable for a wide range of applications in many industries. The flow switches operate only when fluid flow is positively established. When triggered, the M-50 Flow Switch will be within 10% of the desired set point, with repeatability of 5%.The M-50 Flow Switch features two port size options (1/8” or 1/4”) and has a flow range up to 170 CCM (0.04 GPM) for water and 5,000 SCCM for air.* M-50 Inline Flow Switches have configurations available for single-pole, single-throw (SPST) or single-pole, dual-throw (SPDT) allowing for flexibility with different outputs for both the high and low set point. All Malema Fixed Set Point Flow Switches can have their own customized set points calibrated at the factory before shipping. Additionally, Malema offers flow switches with pre-calibrated set point ranges for applications that do not require a custom calibrated range.
MALEMA流量開關M-50系列其他常用型號：
MALEMA M-50-T11-11-007
MALEMA M-50-S23-10
MALEMA M-50-P13-00-001
MALEMA M-50-P11-00-033
MALEMA M-50-5-A-SS
MALEMA M-50-S23-02-006
MALEMA M-50-T21-01-012
MALEMA M-50X-S23-02-004
MALEMA M-50-S23-10
MALEMA M-50-T13-00
MALEMA M-50X-S13-00-055
MALEMA M-50-P11-00-06
MALEMA M-50-P21-01-001
MALEMA M-50-S11-12
MALEMA NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MALEMA流量開關M-50-T11-11-007的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MALEMA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.

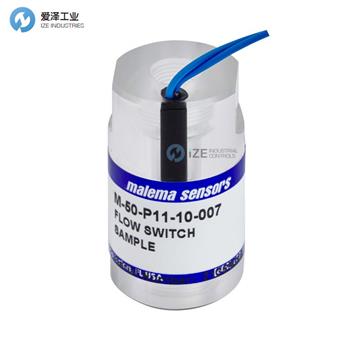

MALEMA流量開關M-50系列M-50-T11-11-007介紹
