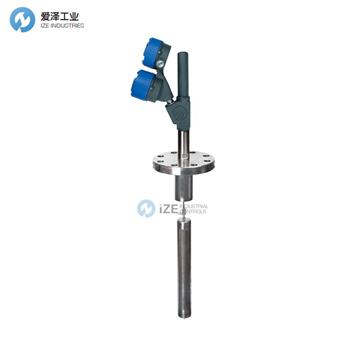

MAGNETROL變送器E4M-51A1-0A1-5K-0RB介紹
DESIGN TYPE | E4M:E4 Modulevel — Liquid Level Displacer Transmitter |
POWER | 5:24 VDC, Two-Wire |
SIGNAL OUTPUT | 1:4–20 mA with HAR |
ACCESSORIES | A:Digital Display and Keypad included; No other accessories included |
CLASSIFICATION | 1:Intrinsically Safe (Ex ia & Ex ic) |
HOUSING / CONDUIT CONNECTION | 0:Integral Aluminum enclosure; 1?2" NPT |
PROCESS TEMPERATURE | A:Up to 150 °C; no heat extension |
SPECIFIC GRAVITY — LIQUID | 1:0.55–1.09 |
PROCESS CONNECTION — HEAD FLANGE | 5K:3" 600# ASME RTJ |
CONSTRUCTION CODES | 0:Industrial |
MATERIAL OF CONSTRUCTION | R:Carbon Steel flange; 316 SST e-tube, stem, displacer and cable assembly (if applicable) |
LEVEL RANGE/ DISPLACER LENGTH | B:813 (32) mm (inches) |
MAGNETROL變送器E4M系列介紹
E4 Modulevel?是一種回路供電的兩線制儀器，利用簡單的浮力原理檢測和轉換液位變化為穩定的輸出信號。液位感應元件和輸出電子元件之間的聯動提供了純機械的設計和結構。變送器的垂直在線設計使儀器重量輕，安裝簡便。該儀器有多種配置和壓力等級，可適用于不同的應用。
E4 Modulevel配備基于微處理器的電子設備，具有4–20 mA/HART?數字輸出。E4支持FDT/DTM標準，并且使用PACTware? PC軟件包，可實現額外的配置、診斷和趨勢分析能力。
The E4 Modulevel? is a loop powered, two-wire instrument, utilizing simple buoyancy principles to detect and convert liquid level changes into a stable Output signal. The linkage between the level sensing element and output electronics provides a purely mechanical design and construction. The vertical in-line design of the transmitter results in low instrument weight and simplified installation. The instrument comes in a variety of configurations and pressure ratings for varied applications.
The E4 Modulevel has microprocessor-based electronics with 4–20 mA/HART? digital output. E4 supports the FDT/DTM standard and a PACTware? PC software package allows for additional configuration, diagnostics, and trending capabilities.
MAGNETROL變送器E4M系列其他常用型號：
MAGNETROL E4M-51A1-0A1-5K-0RB
MAGNETROL electrode NEW + ORIGINAL+ ONE YEAR WARRANTY
