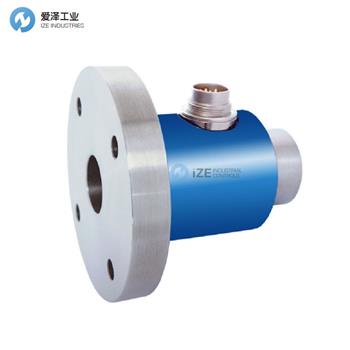

LORENZ扭矩傳感器D-D2223系列介紹
Reactive Torque Sensor D-2223 | |
Rated torque Mnom | 2..5000 N?m |
Accuracy class | 0.2 (optional 0.1)% Mnom |
Relative repeatability error in unchanged mounting position b' | +0.02% Mnom |
Rated characteristic value Cnom | 1 +0.2% mV/V |
Bridge resistance Rgr | 350Ω |
Rated range of excitation voltage | 2...12 VDC |
Electrical connection | 6-pin series 7231 |
Reference temperature Tref | 23°C |
Rated temperature range | -5... 45°C |
Operating temperature range | -15... 55°C |
Storage temperature range | -30..95°C |
Temperature effect on zero signal TKp | ±0.2 % Mnom/10 K |
Temperature effect on characteristic value TKc | ±0.1 % Mnom/10 K |
Maximum operating torque MG (static) | 150 % Mnom |
Torque limit Mmax (static) | 200 % Mnom |
Breaking torque Mg (static) | >300 % Mnom |
Permissible oscillation stress when subjected to torque Mdf | 70 (peak-to-peak) % Mnom |
Level of protection | IP50 |
LORENZ扭矩傳感器描述
反應扭矩傳感器，非旋轉型
非旋轉扭矩傳感器（反應型或靜態扭矩傳感器）通常用于各種應用中的反應測量。它們是無磨損的，并且與LORENZ所有的扭矩傳感器一樣，設計方式使得在LORENZ的技術數據中指示的極限剪切力和極限推力對傳感器元件的應變最小，因此不影響測量結果。默認情況下，LORENZ的傳感器提供以mV/V為單位的模擬、未放大的應變計橋輸出信號?？蛇x地，LORENZ的反應扭矩傳感器可以提供-30°C至120°C的擴展溫度范圍。這種類型的傳感器的典型應用包括：擠出機上的反應扭矩測量、測試臺應用、螺絲刀測試以及軸承摩擦扭矩的測定。
Reactive Torque Sensors, non-rotating
Non-rotating torque sensors (reactive or static torque transducers) are generally used for reaction measurements in most varying applications. They are wear-free and, like all of our torque sensors, designed in such way that the limit shear force and the limit thrust load, indicated in our technical data, only have minimum strain on the sensor element and thus do not affect the measurement result. By default, our sensors provide an analog, unamplified strain gauge bridge output signal in mV/V. Optionally, our reactive torque sensors can be supplied with an extended temperature range of -30°C up to 120°C. Typical applications for this type of transducer are for example reaction torque measurements on extruders, test bench applications, screw driver testing, determination of bearing friction torques
LORENZ扭矩傳感器D-D2223系列其他型號列舉
LORENZ D-D2223/M325-G22
LORENZ D-D2223/M410-G22
LORENZ 102954
LORENZ 102955
LORENZ 102983
LORENZ 102573
LORENZ 102984
LORENZ 102574
LORENZ 102428
LORENZ 102958
LORENZ 102959
LORENZ 102767
LORENZ 102429
LORENZ 108514
LORENZ Torque sensor with recorder NEW + ORIGINAL+ ONE YEAR WARRANTY
