PIXSYS溫控器ATR142系列技術參數
Input | |
K type Thermocouple | -436 to 2480°F (-260 to 1360°C) |
S type Thermocouple | -40 to 3200°F (-20 to 1760°C) |
R type Thermocouple | -40 to 3200°F (-20 to 1760°C) |
J type Thermocouple | -328 to 3200°F (-200 to 1760°C) |
RTD PT100 | -328 to 1112°F (-200 to 600°C) |
RTD PT100 | -328 to 284°F (-200 to 140°C) |
NI 100 | -76 to 356°F (-60 to 180°C) |
NTC 10K Ohm Thermistor | -40 to 257°F (-40 to 125°C) |
PTC 1K Ohm Thermistor | -40 to 302°F (-40 to 150°C) |
PT500 | -148 to 1112°F (-100 to 600°C) |
PT1000 | -148 to 1112°F (-100 to 600°C) |
Voltage | 0 to 10V (0-40mV) |
Current | 0 to 20mA (4 to 20mA) |
Potentiometer | 1 to 6K (1 to 150K) |
Output | 2 x Relays 8 A. SSR. |
Power Supply | 12 to 24Vac/Vdc, 115Vac, 230Vac. |
Power Consumption | 3 to 6VA max. |
Power Supply | Operative- 32°F +113°F -0°C +45°C |
Humidity | (non condensing) 35-95%. |
Housing | Polycarbonate UL94V2 self-extinguishing |
Dimensions | 3 3/8" x 3 " x 2 1/8", 35 x 77x x 53 mm. |
Weight | 3 oz 100 g. |
EMC | For industrial environments. |
Configuration | PC Configurable, Memory Card |
PIXSYS溫控器ATR142系列介紹
ATR142 斜坡發生器和恒溫控制器是一款用途廣泛的 4 位 PID 控制器，專為各種工業應用中的精確溫度管理而設計。該控制器具有雙顯示屏，可同時顯示測量變量和設定點，可確保實時監控和輕松調整。
其緊湊的設計，僅需 1 1/4 x 2 7/8 英寸的最小面板開孔，使其非常適合空間有限的安裝。ATR142 可承受惡劣的環境條件，配備可選墊圈時可提供高達 IP65 的防護等級。
特點
? 雙顯示屏：使用綠色和紅色 LED 顯示屏同時查看測量值和設定點。
? 多個設定點：配置最多三個設定點，可通過數字輸入觸發以創建復雜的溫度曲線。這些曲線允許精確的溫度斜坡和恒溫，使溫度能夠以預定的間隔上升或下降，在規定的時間內保持特定水平，并根據需要冷卻。
? 靈活的輸出選項：ATR142 支持最多兩個繼電器、一個固態輸出和一個可選的 RS485 Modbus 通信接口，使其能夠適應各種控制和報警場景。
? 廣泛的傳感器兼容性：控制器可容納各種傳感器輸入，包括熱電偶、RTD、mA、電壓、mV、熱敏電阻和電位計。這種靈活性使其適用于溫度、流量、液位、pH、壓力測量等。
? 易于配置和克?。篈TR142 可以通過其直觀的前面板鍵盤或基于 PC 的軟件進行編程。存儲卡選項允許高速克隆多個單元，簡化配置和設置。
? 準確且響應迅速：ATR142 的采樣時間為 15 毫秒，精度高（TC/RTD 為 0.5% ± 1 位，mA/V 為 0.2% ± 1 位），可確保精確控制和可靠運行。
? 認證質量：ATR142 具有 CE 標志和 UL 認證，確保符合國際安全和質量標準。

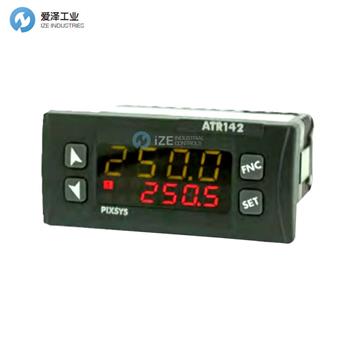

The ATR142 Ramp Generator and Soak Temperature Controller is a highly versatile 4-digit PID controller designed for precision temperature management across various industrial applications. With dual displays showing both the measured variable and the set point, this controller ensures real-time monitoring and easy adjustments.
Its compact design, requiring a minimal panel cut-out of only 1 1/4 x 2 7/8 inches, makes it ideal for installations with space constraints. The ATR142 is built to withstand harsh environmental conditions, offering protection up to IP65 when equipped with an optional gasket.
Features
? Dual Display: Simultaneously view the measured value and the set point with its green and red LED displays.
? Multiple Set Points: Configure up to three set points, which can be triggered by a digital input to create complex temperature profiles. These profiles allow for precise temperature ramps and soaks, enabling the temperature to rise or fall at predetermined intervals, maintain specific levels for defined periods, and cool down as required.
? Flexible Output Options: The ATR142 supports up to two relays, a solid-state output, and an optional RS485 Modbus communication interface, making it adaptable to a wide range of control and alarm scenarios.
? Wide Sensor Compatibility: The controller accommodates various sensor inputs, including thermocouples, RTDs, mA, voltage, mV, thermistors, and potentiometers. This flexibility makes it suitable for temperature, flow, level, pH, pressure measurements, and more.
? Easy Configuration and Cloning: The ATR142 can be programmed via its intuitive front panel keypad or through PC-based software. A memory card option allows for high-speed cloning of multiple units, simplifying configuration and setup.
? Accurate and Responsive: With a sampling time of 15 ms and high accuracy (0.5% ± 1 digit for TC/RTD and 0.2% ± 1 digit for mA/V), the ATR142 ensures precise control and reliable operation.
? Certified Quality: The ATR142 is CE marked and UL recognized, ensuring compliance with international safety and quality standards.
PIXSYS溫控器ATR142系列其他常用型號：
PIXSYS ATR142-ABC-T
PIXSYS ATR142-ABC
PIXSYS ATR144-ABC
PIXSYS ATR144-ABC-T
PIXSYS TEMPERATURE CONTROLLER NEW + ORIGINAL+ ONE YEAR WARRANTY
