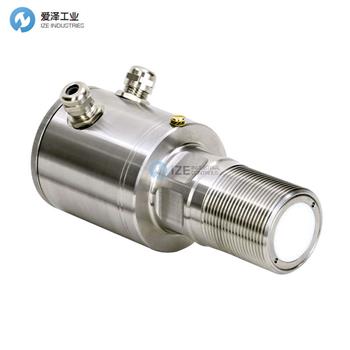

WITRONIC流量開關FS510M技術參數
Type: | FS510M |
Measuring principle: | Microwave |
Adjustable parameters: | Gain, filter, hysteresis, delay, min/max |
Sensor surface: | Teflon (PTFE), ceramic optional |
Ambient temperature: | -20 to 60°C |
Process temperature: | -20 to 85°C |
Process pressure: | 0 to 6 bar (temporarily 12 bar) |
Output: | 1x relay contact (operating state) |
Supply: | 24 VDC (18-30 VDC) |
Process connection: | G 1.5" external thread |
Electrical connection: | 2x M16; cable glands, plug-in screw terminals, no cable included |
Protection class: | IP65 |
Housing material: | Stainless steel (1.4307) |
Dimensions: | D75 x 146 mm |
WITRONIC流量開關FS510M產品介紹
可靠的微波流量監測器。在早期階段檢測粉末、灰塵、球團或顆粒的運輸中斷。能夠可靠地檢測物料流，并檢測物料不足或缺失、堵塞或停頓。是市場上較堅固、可靠的設備，結構緊湊且易于安裝。
可安裝在管道、傳送帶、落板、滑槽或類似運輸設備上?？梢栽趲酌淄夤ぷ鳌７墙佑|式，不會損壞材料。非常靈敏和靈活，有許多調整選項。
Reliable microwave flow monitor. Detects early on any disruptions in the transport of powders, dust, pellets or granules. Enables reliable detection of the material flow and detects insufficient or missing material, blockages or standstills. The most robust and reliable device on the market, compact and easy to install.
Can be installed in pipes, on conveyor belts, drop plates, chutes or similar transport equipment. Works from several meters away. Contact-free, no impact on the material. Very sensitive and flexible with many setting options.
WITRONIC流量開關FS系列其他常用型號：
WITRONIC FS 510M
WITRONIC FS 600E
WITRONIC FS 700E
WITRONIC FS 510
WITRONIC FS 600
WITRONIC FS 700
WITRONIC FS 710
WITRONIC FS 750
WITRONIC FLOWSWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WITRONIC流量開關FS510M的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WITRONIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
