ARDUCAM攝像頭套件B0321規格描述
Specifications | |
Image Sensor | |
Sensor | IMX219 |
Still Resolution | 8 Megapixels |
Color Filter Type | Color |
Shutter Type | Rolling |
Optical Size | 1/4″ |
Output Format | MJPG/YUY2 |
Pixel Size | 1.12μm*1.12μm |
Sensor Active Area | 3280(H)×2464(V) |
Max Frame Rate | MJPG: 15fps@3264×2448/2592×1944; 30fps @1920×1080/1600×1200/1280×720/800×600/640×480 |
IR Sensitivity | Integral IR-cut Filter, visible light only |
Lens | |
Focus Type | Auto Focus |
FOV | 78°(D)×60°(H)×47°(V) |
Lens Type | Stock Lens |
F.NO | F2.0 |
E.F.L | 2.96mm |
Default Focus Range | 40mm-∞ |
USB Interface | |
Interface | USB 2.0 device |
Connector | B4B-ZR(LF)(SN) |
UVC Compliant | No additional drivers required |
Electrical and Mechanical | |
Operating Voltage | 5 V +/- 5% |
Working Current | Max 200mA |
Operating Temp. | 32°F-158°F (0°C to 70°C) |
Camera Board Size | 38×38 mm/28×28 mm with Case |
Functionality and Compatibility | |
Audio | Dual Microphone |
Supported OS | Windows, Linux, Android, and Mac OS with USB Application |
Recommend Sample Application | Amcap for Windows, VLC Player for Linux |
UVC Controls | Saturation, Contrast, Acutance, White balance, Exposure. |
ARDUCAM攝像頭套件B0321產品介紹
Arducam B0321是Arducam USB 相機系列的新成員。它是一款 8MP、基于 1/4 英寸 IMX219 圖像傳感器、符合 UVC 標準的自動對焦 USB 2.0 相機。
不擔心安裝驅動程序，Windows、Linux 和 Mac 的原生 UVC 驅動程序應與此相機兼容，因此無需安裝額外的驅動程序。
這款 8MP IMX219 高分辨率彩色 COMS 傳感器和自動對焦功能使其可廣泛應用于家庭監控系統、監控 3D 打印機、物體識別和跟蹤或其他機器視覺應用。

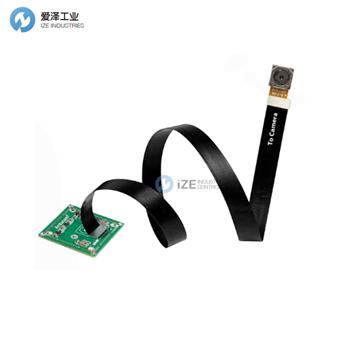

Arducam B0321 is a new member of the Arducam’s USB camera family. It’s an 8MP, based on the 1/4″ IMX219 image sensor, UVC compliant, autofocus USB 2.0 camera.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
This 8MP IMX219 high resolution color COMS sensor and the autofocus feature make it can be widely used in the home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision application.
