AUTOTECH編碼器E7B-B0360-8P0FS技術參數
Housing Type | [7] NEMA 13, size 25 (2.5" dia.), medium duty bearings |
Short-Circuit Protection | [B] Short-circuit proof outputs and CW/CCW switch (For P Type outputs only. Vmax 8-50 VDC), but screw holes are sealed with silicone rubber |
Output Format | [B] Natural Binary |
Number of Words or Counts Per Turn | [0360] Gray Code: 0360 |
Input Power Supply | [8] 8 to 30 VDC |
Digital Output | [p] PNP Source Transistor |
Options | [0] None |
Mounting | [F] Flange Mount |
Connection Position | [S[: Side Mount (female MS connector) |

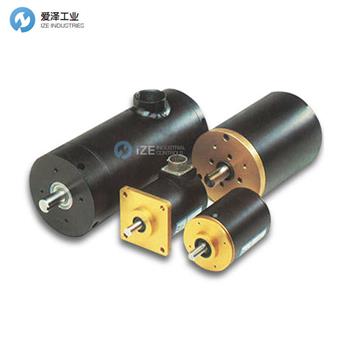

AUTOTECH編碼器DigiSolver系列介紹
DigiSolver 是一種數字解析器，是一種基于解析器的編碼器，其中無刷解析器產生的模擬信號通過內置比例跟蹤轉換器轉換為數字格式。這一新概念和 DigiSolver 的技術采用全封裝電子電路，可提供更高的精度、更高的可靠性、更高的運行速度、更靈活的每圈計數和比光學編碼器更小的尺寸。
? 無光學元件
? 單圈、13 位二進制、格雷碼或 BCD 絕對輸出
? 多圈、18 位二進制或 15 位 BCD 和格雷碼絕對輸出
? 短路保護輸出
? 靈活的每圈計數選項
? 5 VDC 或 8-30 VDC 電壓范圍
? 內置 PLC 同步
? 模擬角度、模擬速度、方向和紋波輸出
? 安裝樣式和外殼選擇
The DigiSolver, a Digital Resolver, is a resolver-based encoder, in which the analog signal produced by a brushless resolver is transformed into a digital format by a built-in ratiometric-tracking converter. This new concept and the advanced patented technology of the DigiSolver with fully potted electronic circuitry, provide higher accuracy, increased reliability, higher operating speeds, more flexible counts-per-turn, and a smaller size than optical encoders.
? No optics, MIL-Grade resolver
? Single-turn, 13-bit Binary, Gray Code, or BCD absolute output
? Multi-turn, 18-bit Binary or 15-bit BCD and Gray Code absolute output
? Short-circuit-proof outputs
? Flexible options of counts-per-turn
? 5 VDC or 8-30 VDC voltage range
? Built-in Synchronization for PLCs
? Analog Angle, Analog Velocity, Direction, and Ripple outputs
? Choice of mounting styles and enclosures
AUTOTECH編碼器DigiSolver系列其他常用型號：
AUTOTECH E6N-A010V-800SS
AUTOTECH E6N-G1024-8NOSS
AUTOTECH E6Y-G1024-8N0SS
AUTOTECH E7B-B0360-8P0FS
AUTOTECH E7N-D0360-5NPSE
AUTOTECH E7N-D0360-5TOSE
AUTOTECH E7N-D1000-5TPFE
AUTOTECH E7R-RL101-000SE
