GRAFF溫度傳感器GF-7112系列技術參數
TECHNICAL DETAILS | |
Core values | PT50/PT100/PT500/PT1000 |
Diameter | 4,76 mm – 10,00 mm in standard |
Form of the measuring tip | 118°angled, plan, convex, spherical |
Bayonet-lock | Nickel plated steel or stainless steel |
Kink protection-/ threaded spring | ? Stainless steel / Inconel up to 1000 mm |
Process temp. at the measuring tip | Up to +600°C depending on version |
Process-connection adapter | Metric or Zoll up to 300mm |
High – quality cable types | Connection cables |
Connectivity | Free ends, plug, special |
Special versions | Customized, on request |
GRAFF溫度傳感器GF-7112系列介紹
Gr?ff GF-7112 系列溫度傳感器特別適用于擠出系統以及工具和機器制造的溫度測量。由于采用了高品質材料和特殊制造工藝，這些傳感器可在高達 +600°C 的溫度下使用。即使在標準版本中，測量套管和連接線也由高品質不銹鋼 1.4571 制成，而不是鍍鋅鋼制成。特別是對于連接電纜，使用高品質和精選的熱材料，即使在使用后也能保證優于 1.5K 的精度。除了直徑為 4.76mm 至 10.00mm 的大量測量套管設計外，還提供大量帶或不帶螺紋適配器的緊固選項。為了提高電纜的防扭結保護，始終有一個防扭結彈簧，長度可達 10,000mm。當然，帶有 PTFE 護套的不銹鋼電纜也越來越多地被使用，因為防扭結保護和防潮設計的積極效果體現了這些傳感器的堅固性。

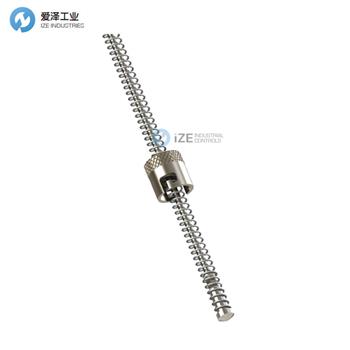

Gr?ff temperature sensors of the GF-7112 series are particularly suitable for use in temperature measurement on extrusion systems and in tool and machine construction. Thanks to the use of high-quality materials and our special manufacturing process, these sensors can be used at temperatures of up to +600°C. Even in the standard version, the measuring sleeve and the connection line are made of high-quality stainless steel 1.4571 and not made of galvanized steel. Especially for the connecting cable, we only use high-quality and selected thermal material, which guarantees an accuracy of better than 1.5K even after use. In addition to a large number of measuring sleeve designs with a diameter of 4.76mm to 10.00mm, we also have a large number of fastening options with or without a thread adapter. For improved anti-kink protection of the cable, there is always an anti-kink spring that can be up to 10,000mm long. Of course, a stainless steel cable with a PTFE jacket is also being used more and more, since the positive effects of the anti-kink protection and a moisture-resistant design characterize the robustness of these sensors.

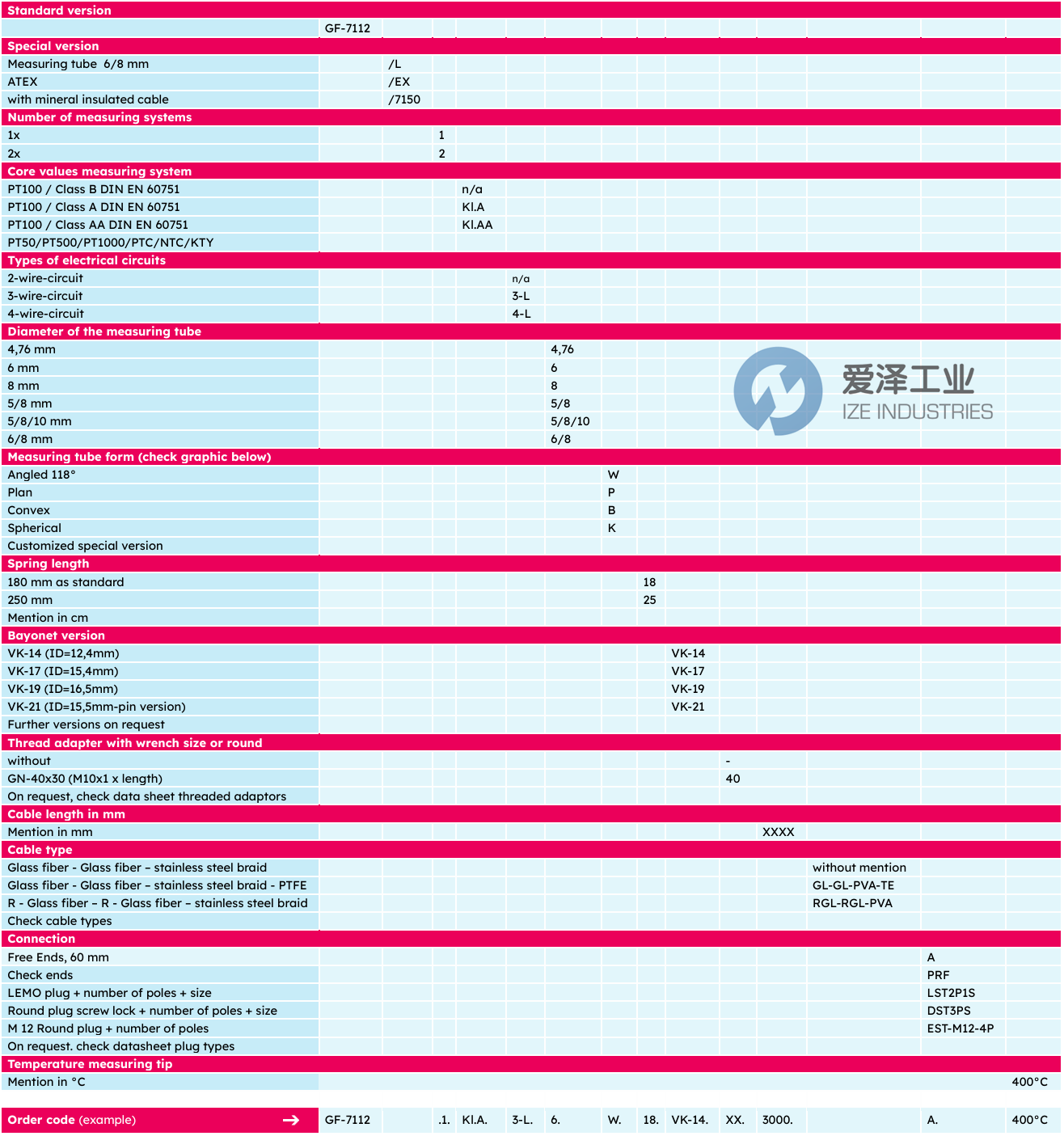

GRAFF溫度傳感器GF-7112系列選型
GRAFF溫度傳感器GF-7112系列其他常用型號：
GRAFF GF.7112.1.3-L.6W.25.VK-17.41.8000
GRAFF GF.7112-1-2L-6-P-15-180-VK17-EGL-2000-400 ° C
GRAFF GF-7112.2.4-L.8.P.25 136001
GRAFF GF-7132 1Pt100/B/3 A003-204-20
GRAFF GF.7112-1-1/3.DIN.4-L.6.W500.VK14.12000.A400°C
GRAFF GF-7112.1.8.W.15.VK-17.44.3000.A.350°C
GRAFF RESISTANCE THERMOMETER NEW + ORIGINAL+ ONE YEAR WARRANTY
