PROSTAT電壓表CVM-780技術參數
Characteristics | |
Intended Operating Range1 | 0 to ±525 volts |
Resolution | 1 volt, 3 digit display |
Circuit Accuracy | <±1% |
Response Time | Approximately 1ms for a voltage step of 200V at the probe tip to the monitor output. |
Digital Display Update | 3 readings per second |
Input Charge/Measurement | Approximately 100 femptocoulomb/volt (1.0x10-13 C/V) |
Input Impedance | ≥1014 ohm in Parallel with <1pF Capacitance |
Monitor Output | Scale Factor: 10,000:1; 100uV/V |
Probe Tips | Metal: Nominally 0.95 and 0.45 inch |
Portable Operation | Approximately 3.5 hours on Full Battery Charge |
Power | 4 each Energizer NH15-2500 Nickel-Metal Hydride rechargeable batteries (AA Size) |
Charger | Universal 90 to 264 Volts, 47 to 63 Hz |
Meter Dimensions without boot (WxHxD) | 10.8 cm x 4.0 cm x 16.5 cm |
Meter Dimensions with boot (WxHxD) | 10.8 cm x 6.0 cm x 19.1 cm |
Probe Dimensions (WxHxL) | 3.7 cm x 2.0 cm x 23.5 cm |
Meter Weight with boot | 24 oz (1.5 lb) |
Probe Weight | 3.6 oz (0.225 lb) |
PROSTAT電壓表CVM-780介紹
新型 CVM-780 接觸式電壓表將數字電壓表的易用性與真正靜電電壓表的高輸入阻抗和低輸入電容結合在小型、便攜式、電池供電封裝中。
作為真正的靜電電壓表，而不是場計，意味著它讀取真實電壓，而不會與靜電場強度混淆，后者可能明顯不同。
高阻抗手持式靜電接觸電壓表
輕松精確地測量導體上的電壓
測量任何導體上的實際電勢
包括 2 個陶瓷尖端以防止放電
范圍從 0 到 ±525 伏，精度 <±1%
由可充電鎳氫電池供電
易于讀取的大型液晶顯示屏

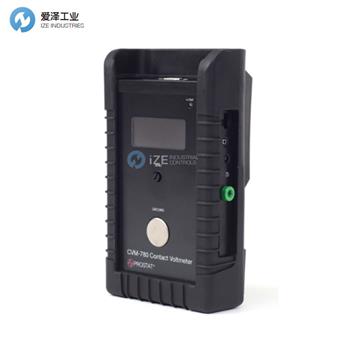

The New CVM-780 Contact VoltmeterTM combines the ease of use of a digital voltmeter with the high input impedance and low input capacitance of a true electrostatic voltmeter in a small, portable, battery operated package.
Being a true electrostatic voltmeter, not a field meter means that it reads real voltage, without confusing it with electrostatic field strength, which can be distinctly different.
High Impedance Hand-Held Electrostatic Contact Voltmeter
Easily Measure Voltages on Conductors with Pinpoint Accuracy
Measures actual Potential on any Conductor
Includes 2 Ceramic Tips to Prevent Discharge
Ranges from 0 to ±525 Volts with and accuracy of <±1%
Powered by Rechargeable Nickel Metal Hydride Batteries
Large, Easy to Read LCD Display
