SIEMENS流量傳感器7ME6310-4HC13-2AA1-Z N02技術參數
Code | 7ME6310-4HC13-2AA1-Z N02 |
Sensor SITRANS FM MAG 3100 | 7ME6310 |
Diameter | 4H = DN 150 (6“) |
Flange norm and pressure rating | C = PN 16 (DN 65 ... 1200 (2?“ ... 48“)) |
Flange material and coating | 1 = Carbon steel flanges ASTM A 105, corrosion-resistant coating of category C4 |
Liner material | 3 = PTFE |
Electrode material | 2 = Hastelloy C276/2.4819 (PFA liner: Hastelloy C22/2.4602) |
Transmitter | A = Standard sensor for remote transmitter (order transmitter separately) |
Communication | A = No communication, add-on possible |
Cable glands/terminal box | 1 = Metric: Polyamide terminal box or MAG 6000 I compact |
Terminal blocks | Z N02 = Factory mounted terminal blocks |

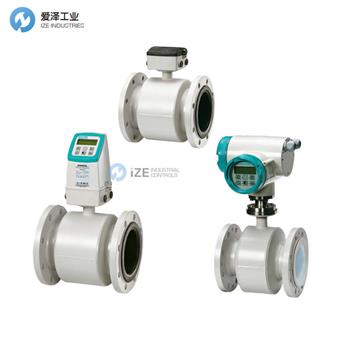

SIEMENS流量傳感器MAG 3100系列介紹
SITRANS FM MAG 3100 是一款種類繁多的電磁流量傳感器，可滿足幾乎所有流量應用的需求。
? 可緊湊或遠程安裝
? 發射機可輕松“即插即用”現場更換
? ATEX 和 FM/CSA 版本
? 適用于溫度高達 180 °C (356 °F) 應用的高溫傳感器
? 符合 EEC 指令：PED、EN 1092-1 法蘭壓力指令 2014/68/EU
? 內置長度符合 ISO 20456，該標準包括尺寸高達 DN 400
? 現場或工廠升級至標準傳感器的IP68/NEMA 6P。
The SITRANS FM MAG 3100 is an electromagnetic flow sensor in a large variety that meets the demands of almost every flow application.
? Compact or remote mounting possible
? Easy “plug & play” field changeability of transmitter
? ATEX and FM/CSA versions
? High temperature sensor for applications with temperatures up to 180 °C (356 °F)
? Meets EEC directives: PED, 2014/68/EU pressure directive for EN 1092-1 flanges
? Built-in length according to ISO 20456, the standard includes sizes up to DN 400
? Onsite or factory upgrade to IP68/NEMA 6P of a standard sensor.

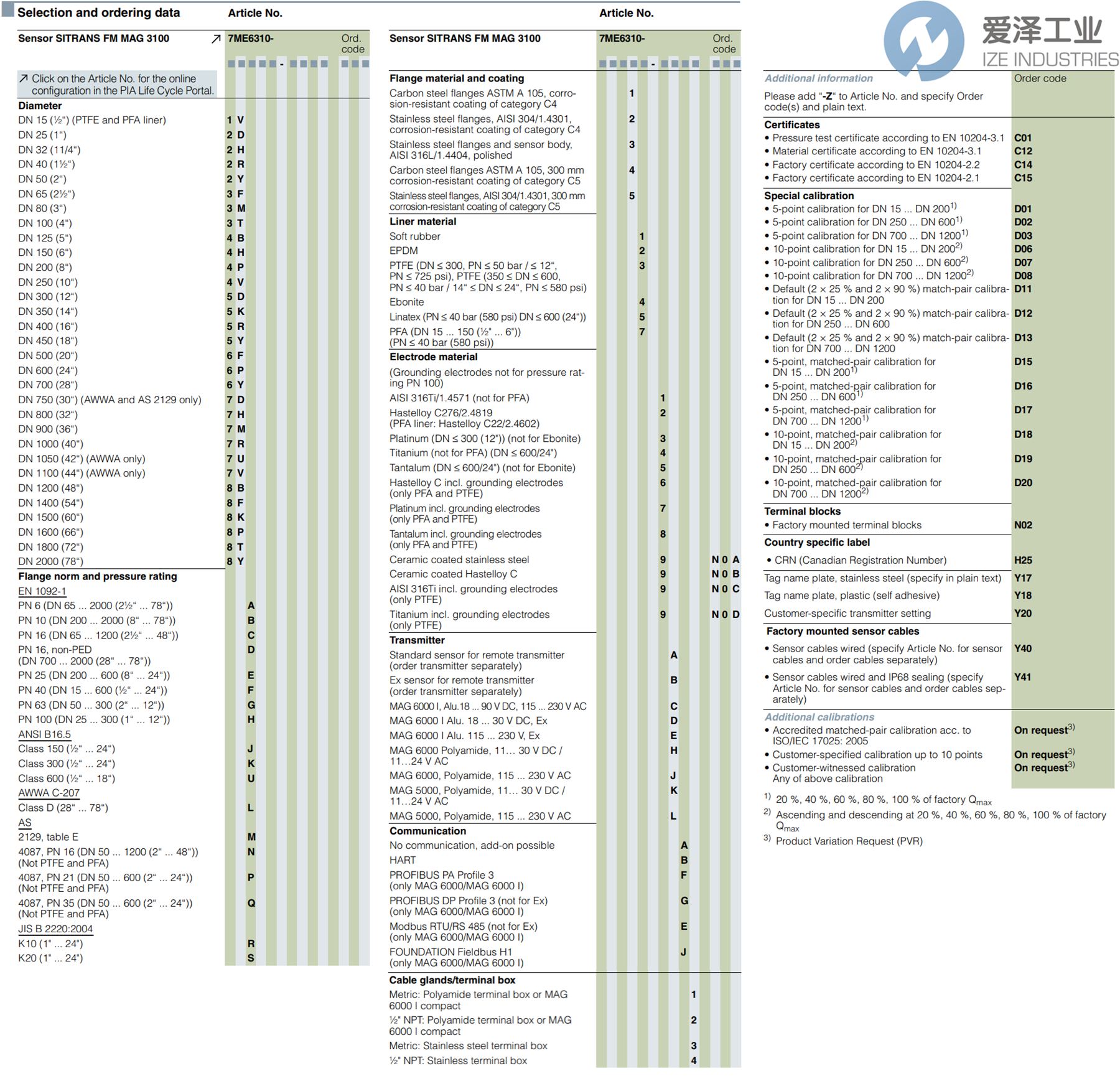

SIEMENS流量傳感器MAG 3100系列選型
SIEMENS流量傳感器MAG 3100系列其他常用型號：
SIEMENS 7ME6310-2DF13-2AA1
SIEMENS 7ME6310-2DJ23-6KA2
SIEMENS 7ME6310-2YF17-8AA1
SIEMENS 7ME6310-5RF12-2AA1
SIEMENS 7ME6310-3MA13-1KA1
SIEMENS 7ME6310-3TF13-2AA2
SIEMENS 7ME6310-6PC11-2BA3
SIEMENS 7ME6310-2DF11-1AA1
SIEMENS 7ME6310-2YJ32-1CB1
SIEMENS 7ME6310-2YF11-1AA1
SIEMENS 7ME6310-4VJ13-2AA2
SIEMENS 7ME6310-3TF12-5CG1-Z C14
SIEMENS 7ME6310-4HC13-2AA1-Z N02
