WADECO微波傳感器MWS-ST/SR-11技術參數
Standard Model | MWS-ST/SR-11 |
Type | Transmitter : MWS-ST-11 |
Power supply | AC100~120V ±10% 50/60Hz & AC200~240V ±10% 50/60Hz or DC24V ±10% (optional) |
Operating distance | < 262 feet (< 80 meters) |
Frequency & transmission power | Approx. 24GHz, less than 10mW |
Radiation angle | Approx. ±15° (angle in half of receiving value) |
Output contact (on receiver) | 1C relay contacts AC250V, 3A (COS?=1) |
On delay function | 0.1 ~ 10sec |
Condition of output function | Output occurs on change of state, but only after any delay period has past. Output relay is unexcited during output state. |
Delay time from power on to function | Transmitter : Approx. 50msec. |
Power consumption | Transmitter : 2VA |
Noise tolerance | Square wave noise from noise simulator (Rising time: 1 nanosecond, Width: 1 microsecond), ±1.5KV (normal and common modes), with the frequency of the power supply in the 0o ~ 360o phase. |
Operating ambient temperature | -14oF ~ 131oF (-10oC ~ +55oC) |
Non-function ambient temperature | -4oF ~ 158oF (-20oC ~ +70oC) |
Continuous maximum pressure | 73Psi (0.5MPa) |
Enclosure rating | NEMA 4, IP65 Equivalent |
Enclosure construction | Diecast aluminum |
Color | Metallic silver grey |
Weight | Transmitter : 2.2lbs. (1kg) |
WADECO微波傳感器MWS-ST/SR系列介紹
MWS-ST/SR型微波傳感器是由面對面安裝的發射器(MWS-ST)和接收器(MWS-SR)組成的液位開關。
發射器向接收器發射連續的低功率微波束，當光束被阻擋時，輸出繼電器被釋放。
該傳感器廣泛應用于需要高度可靠、非接觸式液位檢測的所有工業領域。 該傳感器通常用于通過監測料箱和筒倉中產品的存在/不存在、流動/無流動狀況以及點液位檢測來進行過程控制。 該傳感器還可用作接近開關，用于檢測自卸車和軌道車等車輛。

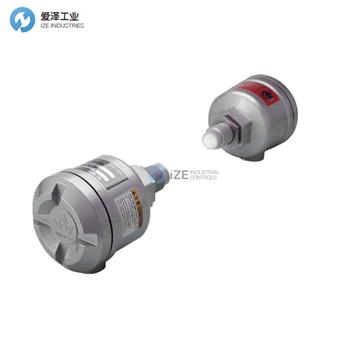

The MWS-ST/SR type microwave sensor is a level switch consisting of a transmitter (MWS-ST) and a receiver (MWS-SR) installed face-to-face.
The transmitter emits a continuous, low power microwave beam towards the receiver and an output relay is released when the beam is obstructed.
The sensor has wide application across all areas of industry where highly reliable, noncontact level detection is required. The sensor is generally used for process control by monitoring presence/absence of product, flow/no flow conditions and point level detection in bins and silos. The sensor may also be used as a proximity switch for detection of vehicles such as dump trucks and rail cars.
WADECO微波傳感器MWS-ST/SR系列其他常用型號：
WADECO MWS-ST/SR-2
WADECO MWS-ST/SR-11
WADECO MWS-ST-11
WADECO MWS-SR-11
