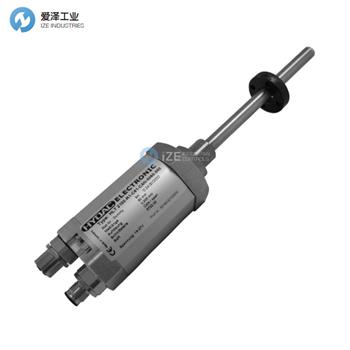

HYDAC位置傳感器HLT2100-R1-M08-C01-0150-000技術參數
Characteristic | Value I Characteristic I Information |
Approval | No |
Design / Geometry | Rod |
Electrical connection | Male connector M16, 8 pole |
Indicator | No |
Measuring principle | Magnetostrictive |
Measuring range in mm | 150 mm |
Mechanical connection | Threaded flange M18x1.5 |
Signal output | 4.. 20 mA (3 conductor) |
Switching outputs | 0 switching output |
HYDAC位置傳感器HLT2100系列介紹
該傳感器的工作原理是磁致伸縮。
如有必要，基于運行時間測量高精度確定位置、路徑和/或速度信號的測量原理。 基于這種非接觸式、無磨損功能的測量系統，提供以下版本：
采用耐壓不銹鋼管外殼，可直接安裝在液壓缸中。
采用鋁型材外殼，外部裝有測量槽或帶有松散磁鐵，由用戶自己引導。
各種輸出信號（模擬/數字）可以連接到 HYDAC ELECTRONIC GmbH 的所有測量和控制設備，并連接到商用評估系統（例如 SPS 控制裝置）。 主要應用領域是工業固定領域。
精度 ±0.05% FS 型。
非常堅固的外殼單元
高抗沖擊和振動能力
優異的 EMC 特性
非接觸、無磨損
The sensor works on the principle of magnetostriction.
The measurement principle for high-precision determination of the position, of the path and/or also of a velocity signal based on a runtime measurement, if necessary. On the basis of this non-contact and wear-free functioning measurement system, offers the following versions:
In pressure-proof stainless steel pipe housing for direction installation in hydraulic cylinders.
In aluminium profile housing with measurement slots fitted on the outside or with a loose magnet to be guided by the user himself.
The various output signals (analogue/digital) enable the connection to all measurement and control devices of HYDAC ELECTRONIC GmbH and the linkage to commercially available evaluation systems (e.g. SPS controls). The main areas of application are in the industrial stationary area.
Accuracy ±0.05% FS type.
Very robust housing cell
High shock and vibration resistance
Excellent EMC characteristics
Non-contact and wear-free
HYDAC位置傳感器HLT系列其他常用型號：
HYDAC HLT2500-L2-P61-PRO-0660-000
HYDAC HLT2500-L2-C61-CAN-2000-000
HYDAC HLT2100-R1-M06-C01-0415-000
HYDAC HLT2100-R1-P61-PRO-0800-000
HYDAC HLT2100-R1-K10-C01-0087-000
HYDAC HLT2100-R1-M08-C01-0120-000
HYDAC HLT2100-R1-P61-F41-0300-000
HYDAC HLT2100-R1-K01-C01-0752-000
HYDAC HLT2100-R1-M08-C01-0150-000
HYDAC HLT2100-R1-M06-C01-0225-000
HYDAC HLT2150-R1-006-C01-0225-000
HYDAC HLT2100-R1-M06-C01-0530-000
