SMART GAS傳感器F1系列技術參數
General features | |
Measurement principle: | Non Dispersive Infra-Red (NDIR), dual wavelength |
Measurement range: | dependent on model – see list |
Gas supply: | by perfusion |
Dimensions: | Length (model dependent) x 28 mm x 42 mm (L x W x H) |
Gas line connectors: | 3 mm internal, 5mm outer diameter |
Technical features @ 25°C, 1013 mbar gas pressure, 0.5 l/min constant gas flow | |
Response time (t90): | Appr. 15 s (at 0.5 l/min) |
Resolution: | 1 ppm to 0.01 Vol.% FS |
Accuracy: | ≤ ±2 % FS |
Long term stability (zero): | ≤ ±2 % FS 1 over 12 month period |
Long term stability (span): | ≤ ±2 % FS over 12 month period |
Repeatability: | ≤ ±2 % FS |
Linearity error: | ≤ ±1 % FS |
Lower detection limit: ≤ 1 % FS (typically) | |
Operating temperature: | -10 °C to 40 °C |
Storage temperature: | -20 °C to 60 °C |
Humidity: | 0 % to 95 % rel. humidity (not condensing) |
Temp. dependence (zero): | ≤ ±0.01 % FS per °C |
Temp. dependence (span): | ≤ ±0.2 % FS per °C |
Air pressure: | 950 to 1050 mbar |
Pressure dependence (span): | 0.1 % to 0.2 % per mbar |
Warm-up time: | < 2 minutes (start up time) |
Flow rate: | 0.2 - 1.5 l/min |
Communication | |
Digital output signal: | Modbus ASCII via UART |
Electrical data | |
Supply voltage: | 6 V DC ± 5 % |
Supply current: | 70 mA average, max. 140 mA |
Power consumption: | < 1 Watt |

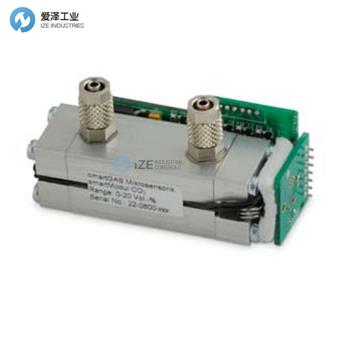

SMART GAS傳感器F1系列介紹
紅外氣體傳感器采用雙光束技術，具有測量和參考通道，適用于分析設備和過程控制應用。 用于漂移和溫度補償的集成評估電子器件。 堅固的鋁制比色皿，帶有氣體管線連接器。
? 紅外測量原理（NDIR）
? 雙光束技術
? 通過 UART 的 Modbus ASCII
? 堅固的鋁比色皿
? 3/5mm 燃氣管線連接器
? 溫度補償
? 高選擇性
? 可提供客戶特定模塊
Infrared gas sensor using dual beam technology with measurement and reference channel for use in analytical devices and process control applications. Integrated evaluation electronics for drift and temperature compensation. Robust aluminium cuvette with gas line connectors.
? Infrared measuring principle (NDIR)
? Dual beam technology
? Modbus ASCII via UART
? Robust aluminium cuvette
? 3/5mm gas line connectors
? Temperature compensation
? High selectivity
? Customer-specific modules possible

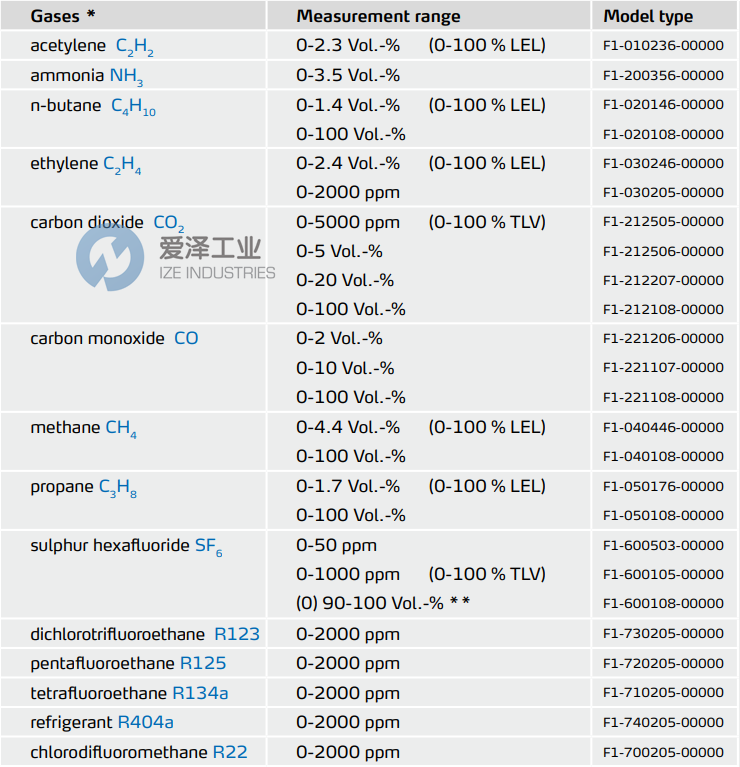

SMART GAS傳感器F1系列選型
SMART GAS傳感器F1系列其他常用型號：
SMART GAS F1-010236-00000
SMART GAS F1-200356-00000
SMART GAS F1-020146-00000
SMART GAS F1-020108-00000
SMART GAS F1-030246-00000
SMART GAS F1-030205-00000
SMART GAS F1-212505-00000
SMART GAS F1-212506-00000
SMART GAS F1-212207-00000
SMART GAS F1-212108-00000
SMART GAS F1-221206-00000
SMART GAS F1-221107-00000
SMART GAS F1-221108-00000
SMART GAS F1-040446-00000
SMART GAS F1-040108-00000
SMART GAS F1-050176-00000
