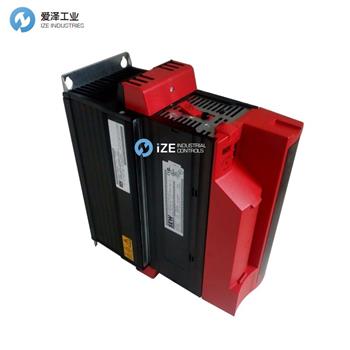

SEW變頻器MDX61B0040-5A3-4-0T技術參數
MOVIDRIVE? B Type | MDX61B0040-5A3-4-0_ |
Power range kW | with overload reserve 1.5 x IN：4 |
Nominal output current A | with overload reserve：9.5 |
Size | 1 |
Dimensions W x H x D mm | 105 x 314 x 234 |
Supply voltage VAC: | 3 x 380 – 500 |
Supply frequency (Hz): | 50 – 60 ± 5 % |
Output frequency Hz: | 0 – 400 |
Motor control mode: | U/f, VFC, CFC, Servo |
SEW變頻器MDX61B系列介紹
MOVIDRIVE MDX60 / 61B是推出的新一代變頻器 新型B系列MOVIDRIVE?驅動器逆變器是令人印象深刻的設備，具有廣泛的基本功能，廣泛的功率范圍，強大的過載能力和模塊化單元設計。它們借助現代的數字逆變器技術，可以無限制地應用功率范圍為0.55至315 kW（0.75至420 hp）的交流變頻器。
借助MOVIDRIVE，即使是異步交流電機也可以達到動態性能和控制質量的水平，而以前只能使用直流電機才能達到。 使用技術和通訊選項的集成控制和擴展選項可在應用程序，項目計劃，啟動和操作的多樣性方面創造出極具成本效益的驅動系統。
MOVIDRIVE MDX60/61B is the new generation of drive inverters from SEW-EURODRIVE. The new B series MOVIDRIVE drive inverters are impressive devices with extensive basic functions, a wide power range, great overload capacity and a modular unit design. They facilitate unrestricted application of AC drives with a power range of 0.55 to 315 kW (0.75 to 420 hp) with the most modern digital inverter technology.
With MOVIDRIVE, even asynchronous AC motors can achieve levels of dynamic performance and control quality that were previously only possible using DC motors. The integrated control and expansion options using technology and communication options create remarkably cost-effective drive systems as regards diversity of application, project planning, startup and operation.
SEW變頻器MDX61B系列其他常用型號：
SEW MDX61B0040-5A3-4-0T
SEW MDX61B005
SEW MDX61B008
SEW MDX61B011
SEW MDX61B014
SEW MDX61B015
SEW MDX61B022
SEW MDX61B030
SEW MDX61B040
SEW MDX61B055
SEW MDX61B075
SEW MDX61B110
SEW MDX61B150
SEW MDX61B220
SEW MDX61B300
SEW MDX61B370
SEW MDX61B450
SEW Drive Inverter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SEW變頻器MDX61B0040-5A3-4-0T的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SEW products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
SEW變頻器MDX61B0040-5A3-4-0T技術參數
