TALGIL反吹控制器FILTRON 1-10技術參數
General Features: | |
Outputs | The modular structure enables from 2 to 10 outputs in steps of 2 |
Inputs | Built-in analog DP sensor |
Modes of operation: | Flushing triggered by Pressure Differential only |
User selectable parameters: | Flushing time per station |
Logging: | Number of cycles triggered by time |
Alarms: | Endless looping of consecutive back flush cycles |
Real time displayed information: | Actual pressure differential value |
Energizing options: | In the DC model - 4 standard “D” type alkaline batteries or 12V DC from external source |
TALGIL反吹控制器FILTRON 1-10介紹

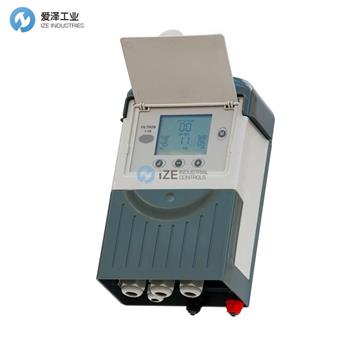

The FILTRON 1-10 is a professional modular backflush controller for up to 10 filters.
The different modules are 2/4/6/8/10 outputs. The outputs can operate a 12V DC latch solenoids or 24V AC solenoids, depending if it is a DC or AC version.
It includes a robust and accurate embedded differential pressure sensor, which can survive a pressure of up to 18 bars. Optionally an external mechanical DP sensor can be used. The FILTRON 1-10 also allows connecting an external pressure sensor (Also called Presostat), and thus preventing the controller from performing unnecessary backflush cycles when there is no irrigation. The backflush process can be triggered by time, by DP or both. The controller has a big customized LCD screen which shows all the backflush parameters, actual status, actual DP value and backflush statistics.
Programming is done easily in two ways:
Standard - Using the LCD screen and the 4 keys.
Optional - With the Bluebits smartphone App. The App communicates with the controller using a BLE (Bluetooth low energy) transmitter. This allows programing the FILTRON 1-10 from up to 10 meters away.
The standard power option for the DC version is 4 X “D” type alkaline batteries (Which can be purchased anywhere). The DC version can also be powered by a 12V DC power supply or a small solar panel and a small rechargeable battery. The standard power option for the AC version is the internal 110V AC / 220V AC to 24V AC transformer. The controller has an external manual backflush button, to quickly start / stop a backflush process without even opening the box. If there is a problem of continuous backflush cycles, the controller will detect it and switch to backflush by time only. The controller also alerts in case of a low battery situation.
FILTRON 1-10 是一款專業的模塊化反吹控制器，最多可容納 10 個過濾器。
不同的模塊是 2/4/6/8/10 輸出。輸出可以操作 12V DC 鎖定螺線管或 24V AC 螺線管，具體取決于它是 DC 還是 AC 版本。
它包括一個堅固而準確的嵌入式差壓傳感器，可以承受高達 18 巴的壓力?？梢赃x擇使用外部機械 DP 傳感器。 FILTRON 1-10 還允許連接外部壓力傳感器（也稱為 Presostat），從而防止控制器在沒有灌溉時執行不必要的反沖循環。反沖過程可以由時間、DP 或兩者觸發。控制器有一個定制的大液晶屏，顯示所有反吹參數、實際狀態、實際DP值和反吹統計。
編程很容易通過兩種方式完成：
標準 - 使用 LCD 屏幕和 4 個鍵。
可選 - 使用 Bluebits 智能手機應用程序。該應用程序使用 BLE（低功耗藍牙）發射器與控制器通信。這允許在最遠 10 米外對 FILTRON 1-10 進行編程。
DC版本的標準電源選項是 4 X “D” 型堿性電池（可在任何地方購買）。DC版也可以用12V直流電源或小型太陽能電池板和小型充電電池供電。AC版本的標準電源選項是內部110V AC / 220V AC到24V AC變壓器。控制器有一個外部手動反吹按鈕，無需打開盒子即可快速啟動/停止反吹過程。如果連續反吹循環出現問題，控制器將檢測到它并僅按時間切換到反吹?？刂破鬟€會在電池電量不足的情況下發出警報。
