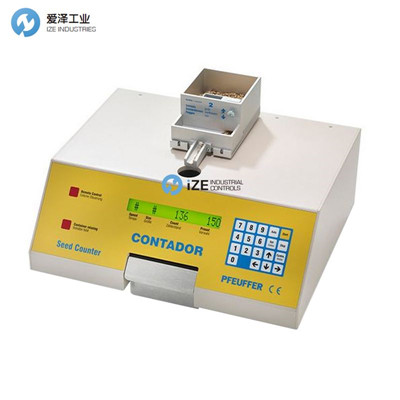

PFEUFFER種子計數器Contador簡介
計數并填充從0.3毫米到15毫米的所有種子
優點：
-計數速度快
-精確計數
-使用方便
-安靜的操作
-靈活
通過電磁鐵將進料容器固定就位，并在計數過程中產生振動。待計數的材料到達出口并通過光電計數器落入容器中。
所述康塔選擇其計數速度自動依賴于材料的大小進行計數。這保證了計數能力的最佳使用，并將計數時間減少到最小，同時保持計數精度。在計數完成之前不久，CONTADOR降低計數速度，以便不再計算種子數量。計數速度也可以手動調節。儀器可以識別容器或進料容器何時不存在，停止計數并在顯示器上報告事實，以便不發生操作故障。不計算尺寸明顯較小的顆粒。因此，例如，豌豆樣品中的油菜籽落入容器中而不計數。通過手動調節種子大小，可以控制顆粒的計數。
Count and Fill all seeds from 0,3 mm up to 15 mm
high counting speed
precise count
easy to use
quiet operation
flexible
The feed container is held in place by an electromagnet and vibration induced during counting. The material to be counted reaches the outlet and falls into the receptacle through a photoelectronic counter.
The Contador selects its counting speed automatically dependent on the size of the material to be counted. This guarantees optimum use of the counting capacity and reduces counting time to a minimum whilst maintaining count accuracy. Shortly before counting is completed the CONTADOR reduces its counting speed so that no more seeds are counted than have been preset. Counting speed may also be manually adjusted. The instrument can recognize when the receptacle or the feed container is absent, stops counting and reports the fact on the display so that no operating faults occur. Particles which are significantly smaller in size are not counted. Thus, for example, rape seeds in a sample of peas drop into the receptacle without being counted. By manually adjusting the seed size it is possible to control the counting of particles.
PFEUFFER種子計數器Contador系列技術資料
電壓：230V，50 / 60Hz（按需）p /no。1410 0009 Contador “E”
115V，50 / 60Hz（按需）p /no。1410 0010 Contador “E”
外形尺寸：430x235x380mm（長*高*寬）
重量：約16公斤
Voltage:230V, 50/60Hz (on demand) p/no. 1410 0009 Contador "E"
115V, 50/60Hz (on demand) p/no. 1410 0010 Contador "E"
Sieve size:430x235x380mm (LxHxW)
Weight:approx. 16 kg
PFEUFFER種子計數器Contador 2簡介
高速計數和填充
優點：
-計數速度可達5000粒/分鐘
-設計緊湊
-與灌裝站Contafill 2兼容
-可通過PC軟件完全控制
-用于油菜籽和谷物的可拆卸飼料容器
-操作穩健可靠
-計數和填充小種子和谷物
-有五個并行計數通道
應用領域
該Contador 2是基于與著名的種子計數器的實踐經驗，新開發的儀器Contador。
現在可以通過相當高的計數速度來補充進料容器的成熟處理，短進料距離和高計數精度。與傳統的康塔多相比，傳統的花費大約90秒計算1000個油菜籽，而Contador 2只需要12秒。
用于小種子（第1號）或谷物（第2號）的飼料容器允許快速且靈活地用于不同種子類型。
該概念允許快速改變樣品而不必清空計數通道。
操作
將進料容器放在Contador 2上并填充樣品。儀器自動識別容器并加載最佳參數。在定義計數量之后，磁鐵保持進給容器并且振動元件使其振蕩。
專門開發的算法可確保最佳進給速率，從而保證高計數速度和精度。
計數參數和進給速率也可以單獨設置并保存在單獨的配置中。
容器的設計容積為250立方厘米。這相當于大約35000個菜籽。小麥品種（270 cm）的粒徑約為4500粒。
設計
由于采用輕巧緊湊的塑料外殼，Contador 2的使用非常靈活。進料容器，計數通道和進料板由陽極氧化鋁制成。
對于更大的樣品量，可選擇自動進樣。
所述Contador 2配備有一個串行RS232C和Contafill接口，其可連接在填充站。
Field of application
The Contador 2 is a newly developed instrument which is based on the practical experience with the renowned seed counter Contador.
The proven handling of the feed containers, the short feeding distance and the high counting precision are now complemented by a considerably higher counting speed. With the traditional Contador it took you approx. 90 s to count 1000 rapeseeds, with the Contador 2 this only takes you 12 s.
Feed containers for small seeds (no. 1) or cereals (no. 2) allow a fast and flexible use for different seed types.
This concept permits a fast change of samples without having to empty the counting channels.
Operation
The feed container is placed onto the Contador 2 and the sample is filled in. The instrument automatically recognizes the container and loads the optimal parameters. After defining the counting quantity, a magnet holds the feed container and a vibrating element causes it to oscillate.
A specially developed algorithm ensures an optimal feed rate to guarantee a high counting speed and precision.
Counting parameters and feed rate can also be set individually and saved in an individual configuration.
The container is designed for a volume of 250 cm3. This corresponds for example to approx. 35,000 rapeseeds. The version for wheat (270 cm3) has a capacity of approx. 4,500 grains.
Design
Thanks to the light and compact plastic housing, the Contador 2 is very flexible in its use. Feed containers, counting channels and feeding plate are made from anodized aluminium.
For bigger sample quantities, an automatic sample feed is optionally available.
The Contador 2 is equipped with a serial RS232C and a Contafill interface to which the filling station can be connected.
PFEUFFER種子計數器Contador 2技術資料
電源：230 V / 50 Hz（24 V）
尺寸：375 x 168 x 185 mm
重量：4.5千克
集裝箱量：
1號油菜籽：約250cm3
2號谷物：約270cm3
計算速度：
作物 | 種子/分鐘 | 時間/ 1000個 | 精確 |
油菜籽 | 5000 | 12秒 | 0.30% |
谷物 | 2500 | 24秒 | 0.30% |
作物 | 袋/分鐘@ 1000粒）* | 時間 | |
油菜籽 | 3 | 20秒 | |
谷物 | 2 | 30秒 |
Power supply：230 V / 50 Hz (24 V)
Dimensions：375 x 168 x 185 mm
Weight：4.5 kg
Container volume:
No. 1 rapeseed: approx. 250 cm3
No. 2 cereals: approx. 270 cm3
Counting speed
crop | seeds / minute | Time/1000 pcs. | Precision |
rape seed | 5000 | 12 s | 0.30% |
cereals | 2500 | 24 s | 0.30% |
crop | bags / minute @ 1000 grains)* | time | |
rape seed | 3 | 20 s | |
cereals | 2 | 30 s |
PFEUFFER種子計數器Contador系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件PFEUFFER種子計數器系列列表：
PFEUFFER種子計數器Contador
PFEUFFER種子計數器Contador2
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PFEUFFER種子計數器Contador系列的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關PFEUFFER種子計數器Contador系列更詳細的信息或者購買PFEUFFER相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.wap.pnxqid.cn.
