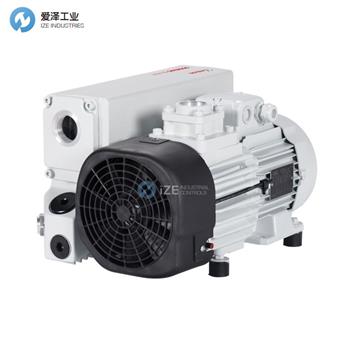

LEYBOLD真空泵SV40B技術參數
Specifications | ||
Inlet connection: | G 1 1/4" Inside thread | |
Outlet connection: | G 1 1/4" Inside thread | |
Hz: Nominal pumping speed at 60 Hz | 53.0 m3/h | 31.2 cfm |
Pumping speed at 50 Hz: | 38.5 m3/h | 22.7 cfm |
Pumping speed at 60 Hz: | 47.0 m3/h | 27.7 cfm |
Ultimate partial pressure without gas ballast: | ≤ 0.5 mbar | ≤ 0.4 Torr |
Ultimate total pressure without gas ballast: | ≤ 0.5 mbar | ≤ 0.4 Torr |
Ultimate total pressure with standard gas ballast: | ≤ 1.5 mbar | ≤ 1.1 Torr |
Ultimate total pressure with small gas ballast: | ≤ 0.8 mbar | ≤ 0.6 Torr |
Water vapor tolerance at 50 Hz | ||
with standard gas ballast: | 30.0 mbar | 22.5 Torr |
with small gas ballast: | 10.0 mbar | 7.5 Torr |
Water vapor tolerance at 60 Hz | ||
with standard gas ballast: | 30.0 mbar | 22.5 Torr |
with small gas ballast: | 10.0 mbar | 7.5 Torr |
Water vapor tolerance at 60 Hz | ||
with standard gas ballast: | 900 g/h | |
with small gas ballast: | 340 g/h | |
Operating fluid: | LVO 130 | |
Operating fluid capacity: | 1.0 l | 1.05 qt |
Noise level to DIN 45 635 | ||
without gas ballast: | 58 - 60 dB(A) | |
Mains connection: | 3-ph, 230/400 V, 50 Hz 3-ph, 460 V, 60 Hz | |
Motor rating at 50 Hz: | 1.1 kW | 1.5 HP |
Motor rating at 60 Hz: | 1.5 kW | 2.0 HP |
Rotation speed at 50 Hz: | 1.500 min-1 | 1.500 rpm |
Rotation speed at 60 Hz: | 1.800 min-1 | 1.800 rpm |
Motor protection rating: | IP 55-F | |
Admissible ambient temperature: | +12 to +40°C | +54 to +104°F |
Dimensions: | see dimension sheet | |
Weight: | ≈ 43.0Kg | ≈ 94.8 lbs |
LEYBOLD真空泵SV40B產品簡介
新的SOGEVAC系列旋片真空泵樹立了新標準，并具有以下主要特點：
緊湊的設計和較小的占地面積
在任何工作條件下均具有非常低且恒定的噪音水平
集成功能，無需外部管道
最高可達SV65 B的電機無需耦合
各種概念/特定的客戶配置
SV40的2類和3類ATEX版本B到SV100 B
簡化維護
所有這些均不影響SOGEVAC泵的高技術性能，例如極限壓力，抽空時間，水蒸氣耐受性……
緊湊的設計和較小的占地面積
新型SOGEVAC B泵可在最小的客戶設計約束下節省開發空間。它也可以代替現場的幾乎所有泵，而無需進行特殊調整。
在任何工作條件下均具有極低且恒定的噪音水平
改進的潤滑回路和機械公差可在所有工作壓力下提供恒定的低噪音水平。這為操作系統的工作人員提供了工作區舒適性的新標準。
The new SOGEVAC range of rotary vane vacuum pumps is setting new standards and offers following major characteristics:
Compact design and small footprint
Very low and constant noise level in any working condition
Integrated functions, no external pipe
No motor coupling up to SV65 B
Variant concept / specific customer configurations
ATEX versions for categories 2 and 3, from SV40 B to SV100 B
Simplified maintenance
All this without any concession to the high technical performance of the SOGEVAC pumps such as ultimate pressure, pump-down time, water vapor tolerance…
Compact design and small footprint
The new SOGEVAC B pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations.
LEYBOLD真空泵SV40B其他常見型號：
LEYBOLD SV630B
LEYBOLD SV750B
LEYBOLD SV300B
LEYBOLD SV570B
LEYBOLD SV470B
LEYBOLD SV120B
LEYBOLD SV100B
LEYBOLD SV65B
LEYBOLD SV40B
LEYBOLD SV25B
LEYBOLD SV16B
LEYBOLD SV10B
