AUBURN火焰棒FRS系列規格描述
Auburn Sales | Probe Length | SKU | Thread | Center Electrode | Operating |
FRS-2-12 | 12 | 13035 | 1/2 NPT | Kanthal | 2350 °F |
FRS-2-18 | 18 | 13037 | 1/2 NPT | Kanthal | 2350 °F |
FRS-2-24 | 24 | 13038 | 1/2 NPT | Kanthal | 2350 °F |
FRS-2-24 | 6 | 13034 | 1/2 NPT | Kanthal | 2350 °F |
FRS-3 | 3 | 13044 | 1/2-14 NPT | Nichrome | 2100 °F |
FRS-4-12 | 12 | 13041 | 1/4-18 NPT | Kanthal | 2350 °F |
FRS-4-24 | 24 | 13043 | 1/4-18 NPT | Kanthal | 2350 °F |
FRS-4-4 | 4 | 13039 | 1/4-18 NPT | Kanthal | 2350 °F |
FRS-4-6 | 6 | 13040 | 1/4-18 NPT | Kanthal | 2350 °F |
FRS-4-7.5 | 8 | 13117 | 1/4-18 NPT | Kanthal | 2350 °F |
FRS-4 with 48"c/w | 48 | 13848 | 1/4-18 NPT | Kanthal | 2350 °F |
FRS-5 | 28 | 13045 | 1/2 NPT | Kanthal | 2350 °F |
FRS-5 with 64" c/w | 64 | 13313 | 1/2 NPT | Stainless Steel | 1500 °F |
FRS-9 | 9 | 13313 | 10mm x 1mm SAE | Stainless Steel | 1500 °F |
AUBURN火焰棒FRS系列介紹
工業燃燒器，鍋爐和烤箱的制造商需要在較長使用壽命內可靠的火焰探頭（或棒）。Auburn設計和制造的火焰探頭堅固耐用，可承受高達2350°F（包括2350°F）的工作溫度。選擇探針或中心線材料（例如Kanthal或Nichrome）是因為它們具有出色的導電和導熱性能。陶瓷絕緣體用于使中心線與安裝殼體絕緣。在額定溫度下，單元不會破裂或擊穿。Auburn火焰探頭可在各種溫度，電壓和尺寸應用中提供準確的讀數。
工作原理-只要針尖與火焰接觸，桿就會將電流傳導到火焰感應系統（控制器）。Auburn是OEM和其他制造商的自有品牌。可提供定制設計服務，以滿足客戶可能具有的任何獨特的火焰感應要求。
每個Auburn工業產品都經過嚴格的工廠檢查，包括陶瓷的導電性和電介質（電弧閃光）測試。
Manufacturers of industrial burners, boilers and ovens require flame probes (or rods) that are reliable throughout a long service life.Auburn designs and manufactur- ers flame probes rugged enough to survive operating temperatures up to and including 2350°F. Probe or centerwire materials such as Kanthal or Nichrome are chosen for their excellent conductive and thermal properties. A ceramic insulator is used to insulate the centerwire from the mounting shell Units will not crack or breakdown, at rated temperatures.Auburn flame probes give accurate readings over a wide range of tem-peratures, voltage and size applications.
Operating principle -The rod conducts current to the flame-sensing system (controller) as long as the tip is in contact with the flame.Auburn manufacturers private label brands for OEM's and others. Custom design service is available to meet any unique flame-sensing requirements customers may have.
Every Auburn Industrial product is subjected to rigorous factory inspection Tests in-clude conductivity and dielectric (arc flash) for ceramic integrity.

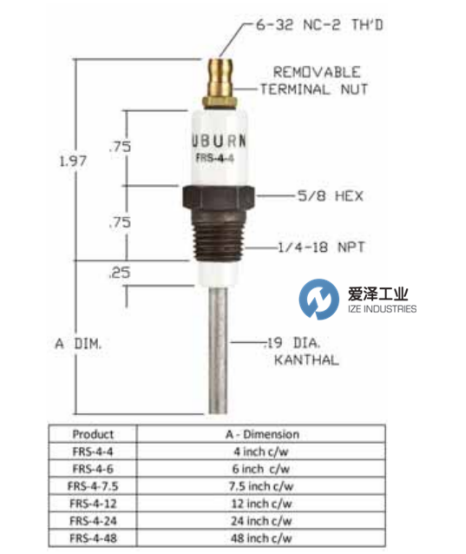

AUBURN火焰棒FRS系列尺寸圖
AUBURN火焰棒FRS系列其他常用型號：
AUBURN FRS-2-12
AUBURN FRS-2-18
AUBURN FRS-2-24
AUBURN FRS-2-24
AUBURN FRS-3
AUBURN FRS-4-12
AUBURN FRS-4-24
AUBURN FRS-4-4
AUBURN FRS-4-6
AUBURN FRS-4-7.5
AUBURN FRS-4 with 48"c/w
AUBURN FRS-5
AUBURN FRS-5 with 64" c/w
AUBURN FRS-9
AUBURN Flame stick NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AUBURN火焰棒FRS-4-6的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AUBURN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
AUBURN火焰棒FRS-4-6技術數據
