KROMSCHRODER壓力表KFM系列產品參數

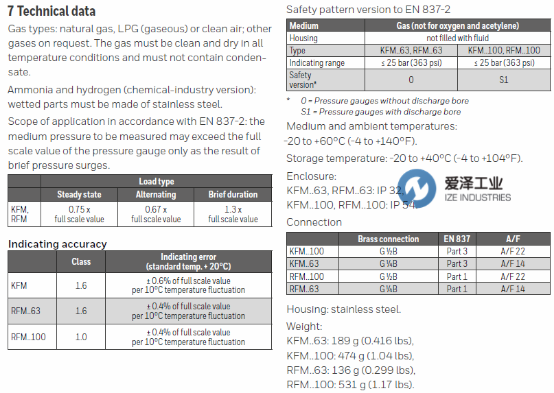

Specifications | |
Gas types | natural gas, LPG (gaseous) or clean air; other gases on request. The gas must be clean and dry in all temperature conditions and must not contain condensate. |
Ammonia and hydrogen (chemical-industry version) | wetted parts must be made of stainless steel. |
Scope of application in accordance with EN 837-2 | the medium pressure to be measured may exceed the full scale value of the pressure gauge only as the result of brief pressure surges. |
Medium and ambient temperatures | -20 to +60°C (-4 to +140°F) |
Storage temperature | -20 to +40°C (-4 to +104°F) |
Enclosure | KFM..100, RFM..100: IP 54. |
Housing | stainless steel |
Weight | KFM..100: 474 g (1.04 lbs), |
KROMSCHRODER壓力表KFM系列產品介紹
帶膜盒元件或波登管的壓力表是帶有彈簧加載式測量元件的機械壓力測量儀。
它們旨在顯示靜態氣體和空氣壓力。
帶有囊形元件的壓力表KFM
帶有EN 837-3囊形元件的壓力表用于測量最大400mbar以下的低壓。被測介質必須干燥清潔。
Pressure gauges with capsule element or Bourdon tube are mechanical pressure measuring instruments with spring-loaded measuring elements.
They are designed to display static gas and air pressures.

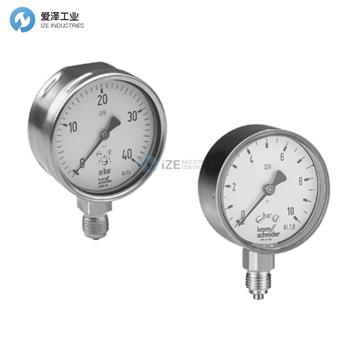

Pressure gauge with capsule element KFM
Pressure gauges with a capsule element to EN 837-3 are used to measure low pressures up to a maximum of 400mbar. The medium being measured must be dry and clean.
KROMSCHRODER壓力表KFM系列其他常見型號：
KROMSCHRODER KFM20
KROMSCHRODER KFM25
KROMSCHRODER KFM40
KROMSCHRODER KFM60
KROMSCHRODER KFM100
KROMSCHRODER KFM160
KROMSCHRODER KFM250
KROMSCHRODER KFM400
KROMSCHRODER KFM2500
KROMSCHRODER KFM100RB63
KROMSCHRODER KFM100B63
KROMSCHRODER KFM60RB63
KROMSCHRODER KFM250RB63
KROMSCHRODER Pressure gauges NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KROMSCHRODER壓力表KFM250RB63的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KROMSCHRODER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
KROMSCHRODER壓力表KFM系列KFM250RB63產品參數
