JOHNSON CONTROLS控制器P77系列技術參數
|
Specification |
Description |
|
Product switch action |
SPDT |
|
Pressure connection |
7/16-20 UNF for 6 mm (1/4 in. SAE external flare fitting), or 914 mm (36 in.) capillary with 6 mm (1/4 in.) flare fitting |
|
Ambient conditions |
Temperature: -40°C to 60oC (-40°F to 140oF) |
|
Enclosure |
Type 1: cast aluminum |
|
Dimensions |
Type 1 enclosure: 88 mm x 80 mm x 53 mm |
|
(H x W x D) |
(3.48 in. x 3.15 in x 2.09 in.) |
|
Approximate shipping weight |
Individual pack: (Type 1 enclosure): 0.5 kg (1.1 lbs) |
|
Compliance |
cULus Listed; UL 60730, File SA516 |
|
P77 for low pressure applications |
|
|
Purpose of control |
Pressure operating control: automatic reset controls |
|
Construction of control |
Electromechanical |
|
Number of cycles |
Automatic: 30,000 cycles |
|
Method of mounting control |
Independently-mounted control |
|
Type 1 or Type 2 action |
Automatic: Type 1; Type 1.C; micro-interruption |
|
Pollution degree |
Category 3 |
|
Heat and fire resistance category |
N/A |
|
Rated impulse voltage |
4,000 V |
|
Ball pressure temperature |
N/A |
|
Field wiring rating |
90°C (194°F) |
|
Maximum overpressure |
20 bar (290 psi) |
|
Cover screw torque requirements |
Tighten enclosure screws to: 1.1–1.4 N·m (10–12 in·lb) |
|
P77 for high pressure applications |
|
|
Purpose of control |
Pressure operating control: automatic reset controls |
|
Construction of control |
Electromechanical |
|
Number of cycles |
Automatic: 30,000 cycles |
|
Method of mounting control |
Independently-mounted control |
|
Type 1 or Type 2 action |
Automatic: Type 1; Type 1.C; micro-interruption |
|
Pollution degree |
Category 3 |
|
Heat and fire resistance category |
N/A |
|
Rated impulse voltage |
4,000 V |
|
Ball pressure temperature |
N/A |
|
Field wiring rating |
90°C (194°F) |
|
Maximum overpressure |
33 bar (479 psi) |
|
Cover screw torque requirements |
Tighten enclosure screws to: 1.1–1.4 N·m (10–12 in·lb) |
OHNSON CONTROLS控制器P77系列介紹
P77 系列壓力控制器主要設計用于商業制冷和空調應用的高低壓切斷控制、抽空控制、冷凝器風扇循環和容量控制。
這些控件可用于多個壓力范圍，并與大多數常用制冷劑兼容。 它們也可用于其他非腐蝕性流體應用。 控件還提供多種不同的電氣額定值和單刀雙擲 (SPDT) 開關配置。
適用于高壓或低壓應用的 P77 系列控制器專為商業制冷和空調應用的單一壓力控制而設計。
P77 Series Pressure Controls are designed primarily for high and low pressure cut-out control, pump-down control, condenser fan cycling, and capacity control on commercial refrigeration and air-conditioning applications.
These controls are available in several pressure ranges and are compatible with most common refrigerants. They may also be used on other non-corrosive fluid applications. Controls also are available in several different electrical ratings and single-pole, double-throw (SPDT) switch configurations.
The P77 Series Controls for high or low pressure applications are designed for single pressure control of commercial refrigeration and air-conditioning applications.
JOHNSON CONTROLS控制器P77系列其他常用型號：
JOHNSON CONTROLS P77AAA-9700
JOHNSON CONTROLS P77AAA-9750
JOHNSON CONTROLS P77AAA-9800
JOHNSON CONTROLS P77AAA-9850
JOHNSON CONTROLS P77AAA-9300
JOHNSON CONTROLS P77AAA-9301
JOHNSON CONTROLS P77AAA-9302
JOHNSON CONTROLS P77AAA-9350
JOHNSON CONTROLS P77AAA-9351
JOHNSON CONTROLS P77AAA-9400
JOHNSON CONTROLS P77AAA-9450
JOHNSON CONTROLS P77AAA-9451
JOHNSON CONTROLS Controls NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JOHNSON CONTROLS控制器P77AAA-9350的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JOHNSON CONTROLS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.

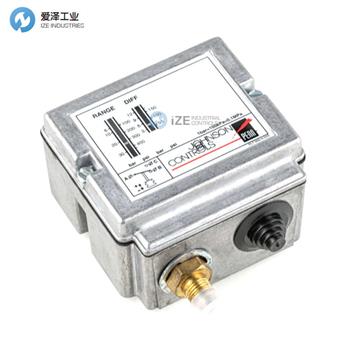

JOHNSON CONTROLS控制器P77系列P77AAA-9350技術參數介紹
